AG Glass Laminating Machine

LPFM-G1600-140HP
Standard model, mid-to-high-end configuration. Customized configuration and models of different sizes can be customized as required.

Consult

Features
Technical Indicators
Overall Dimension

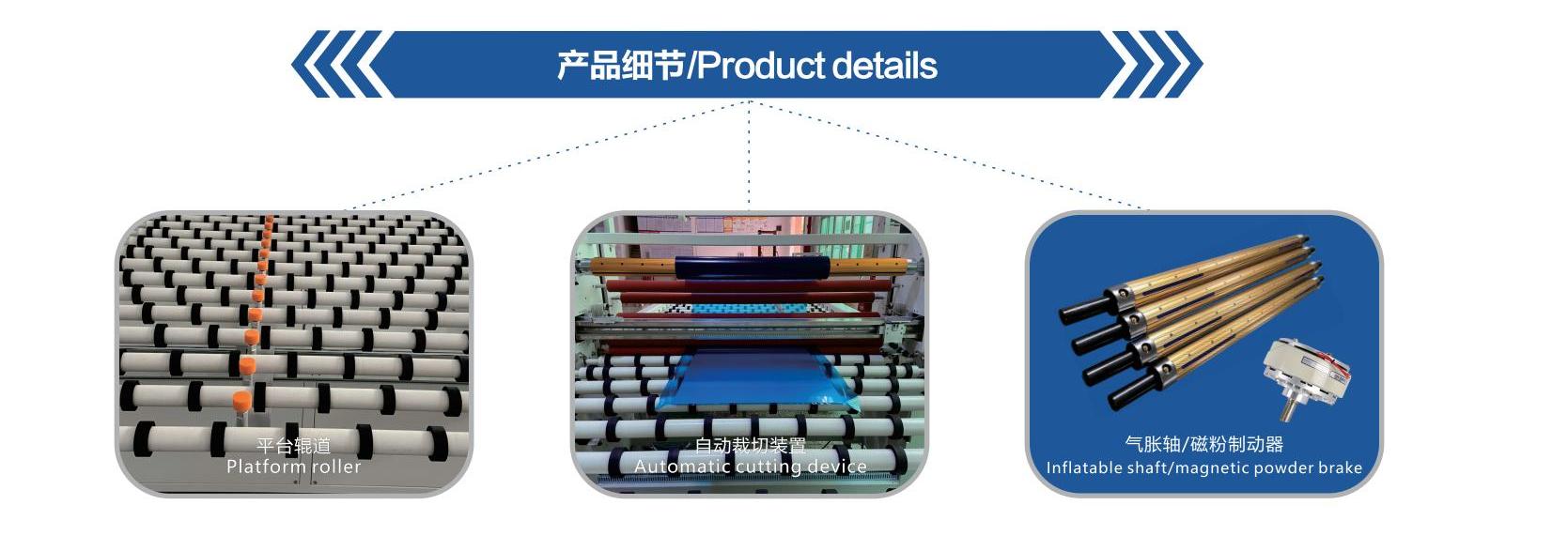

Scope of application This equipment is mainly suitable for AG display screen glass, door and window glass, electronic glass with a thickness of 1~5mm, and covered with 0.06~0.15mm acid-resistant film, explosion-proof film, and protective film. Product features 1. Single machine manual loading and unloading, double-sided lamination 2. Laminating products have automatic positioning and automatic control interval functions 3. Film loading uses an inflatable shaft, and adopts a single-side fixed swing-out film loading, which is convenient and easy to operate 4. Double-knife film cutting method: double knives cut the film along the edge of the glass, the film is flush with the edge of the glass 5. Use magnetic powder tension control, and control constant tension through PLC 6. Use imported electrical appliances to ensure the stability and service life of the product 7. Designed with a waste collection function, which can realize the recycling of release film 8. Designed with a fault automatic alarm function, it is convenient to check the fault location and quickly eliminate the fault 9. The platform rubber wheel is coated with anti-static and anti-scratch glass material 10. The laminating rubber roller uses a high-quality silicone rubber roller with moderate hardness 11. The laminating pressure cylinder is controlled, and the left and right ends can be adjusted separately 12. There is a counting function, which can realize the storage of multiple groups of data in different time periods for easy reference 13. It has the function of docking assembly line operation, which is consistent with the height design of the front and rear assembly lines.
LPFM - G1600 - 140HP
Name
Specifications
Unit
Transfer speed
0 - 25 (adjustable)
m/min
Applicable product specifications
400×600~2000×1500
mm
Capacity
200
pcs/H
Platform Roller Spacing
150
mm
Air pressure use
0.4~0.7
Mpa
Positioning accuracy
±1
mm
Film cutting accuracy
±1
mm
Tilt accuracy
±1
mm
Diameter of laminating rubber roller
140
mm
Diameter of rear rubber roller
70
mm
Total equipment power
4
KW
Device input voltage
220/50
V/Hz
Device Dimensions
4200×2560×1450
mm
Equipment weight
≈800
kg

LPFM - G1600 - 140HP
Name	Specifications	Unit
Transfer speed	0 - 25 (adjustable)	m/min
Applicable product specifications	400×600~2000×1500	mm
Capacity	200	pcs/H
Platform Roller Spacing	150	mm
Air pressure use	0.4~0.7	Mpa
Positioning accuracy	±1	mm
Film cutting accuracy	±1	mm
Tilt accuracy	±1	mm
Diameter of laminating rubber roller	140	mm
Diameter of rear rubber roller	70	mm
Total equipment power	4	KW
Device input voltage	220/50	V/Hz
Device Dimensions	4200×2560×1450	mm
Equipment weight	≈800	kg
