Insulating Glass Laminating Machine

LPFM-G2100-200ZP
This equipment is mainly suitable for 4~12mm thick hollow door and window glass, curtain wall glass, bathroom glass, 0.05~0.2mm explosion-proof film and decorative film.

Consult

Features
Technical Indicators

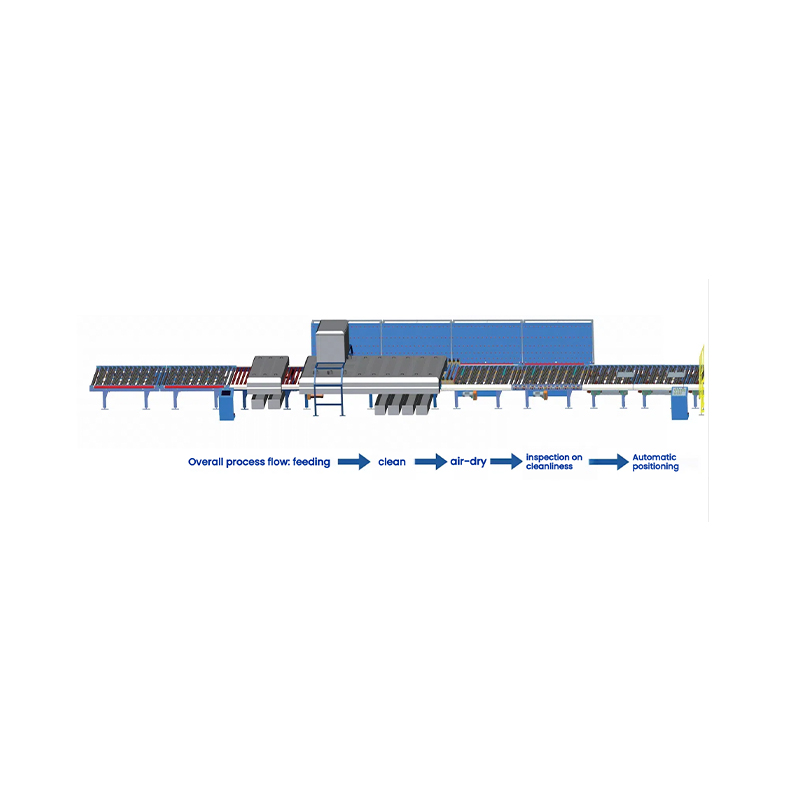

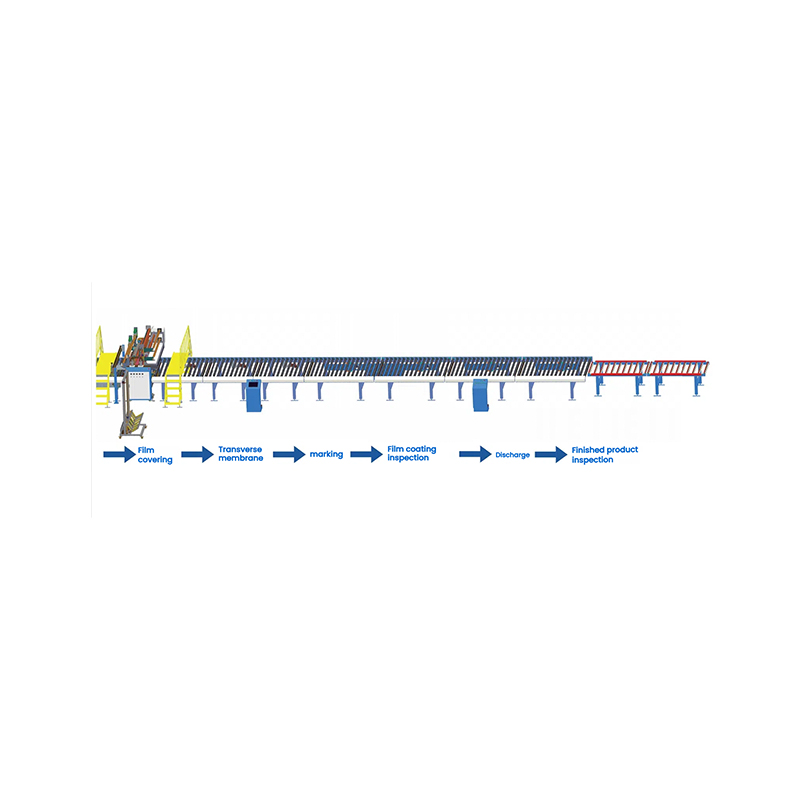

Overall Dimension

1. Two sets of laminating rubber rollers use high-quality silicone to ensure the laminating effect. 2. The platform conveying rollers use scratch-resistant glass rubber rollers or rubber-coated wheels. 3. The laminating rollers and the front and rear conveying platforms are driven by servo motors to ensure laminating accuracy. 4. The laminating pressure is pneumatically adjusted independently on the left and right, which is convenient to control and adjust. 5. The laminating thickness is adjusted with a micrometer scale, which is convenient to operate and has high precision. 6. The film loading shaft rotates unilaterally to load the film, and the loading and unloading of the film is quick and convenient. 7. There is an automatic shutdown auxiliary film replacement device to improve the utilization rate of the film and the efficiency of film replacement. 8. There are automatic release film collection and film edge cutting functions. film tension adjustment function: 9. The separation membrane is equipped with an anti-static device. 10. The film is automatically corrected to align the film with the edge of the glass. 11. The feeding has a fully automatic positioning device to prevent scratching the glass. 12. The three-stage centering positioning platform is independently controlled and can automatically center the glass of different lengths. 13. The film cutting adopts servo motor + linear guide rail, which can cut the film back and forth with single or double knives, which is efficient and stable. 14. Independent electric cabinet and operating table design for convenient wiring. 15. Siemens PLC + touch screen control system is used, which can be connected to the central control system 16. There is an automatic coding device, which can spray pure color patterns, text, etc. on the glass surface, and the font size can be set.
LPFM-G2100-200ZP
Name
Specifications
Unit
Roller length/diameter
2100/200
mm
Platform roll diameter
80
mm
Outlet platform roller diameter
70
mm
Diameter of film guide cot
100
mm
Length of feeding platform
5400
mm
Platform width
2100
mm
Equipment input power
380/50
V/Hz
Maximum film covering size
400×400~4800×2000
mm
Maximum film diameter
200
mm
Platform roll/shaft spacing
150
mm
Length of discharge platform
5400
mm
Platform height
900
mm
Servo motor transmission speed
15
m/min
Cover speed range
0~15
m/min
Coverage thickness range
3~15
mm
Equipment dimensions
11700×2900×1900
mm
Total power of equipment
≈70
KW
Maximum waste diameter
200
mm
Laminating accuracy
±1
mm
Combined air pressure
4~6
kg/cm²
Total weight of equipment
30000
kg
Return conveying platform power
1.5
KW
Retum conveying platform weight
≈600
kg
Overall size of reflow platform
2500×2400×1000
mm

LPFM-G2100-200ZP
Name	Specifications	Unit
Roller length/diameter	2100/200	mm
Platform roll diameter	80	mm
Outlet platform roller diameter	70	mm
Diameter of film guide cot	100	mm
Length of feeding platform	5400	mm
Platform width	2100	mm
Equipment input power	380/50	V/Hz
Maximum film covering size	400×400~4800×2000	mm
Maximum film diameter	200	mm
Platform roll/shaft spacing	150	mm
Length of discharge platform	5400	mm
Platform height	900	mm
Servo motor transmission speed	15	m/min
Cover speed range	0~15	m/min
Coverage thickness range	3~15	mm
Equipment dimensions	11700×2900×1900	mm
Total power of equipment	≈70	KW
Maximum waste diameter	200	mm
Laminating accuracy	±1	mm
Combined air pressure	4~6	kg/cm²
Total weight of equipment	30000	kg
Return conveying platform power	1.5	KW
Retum conveying platform weight	≈600	kg
Overall size of reflow platform	2500×2400×1000	mm
