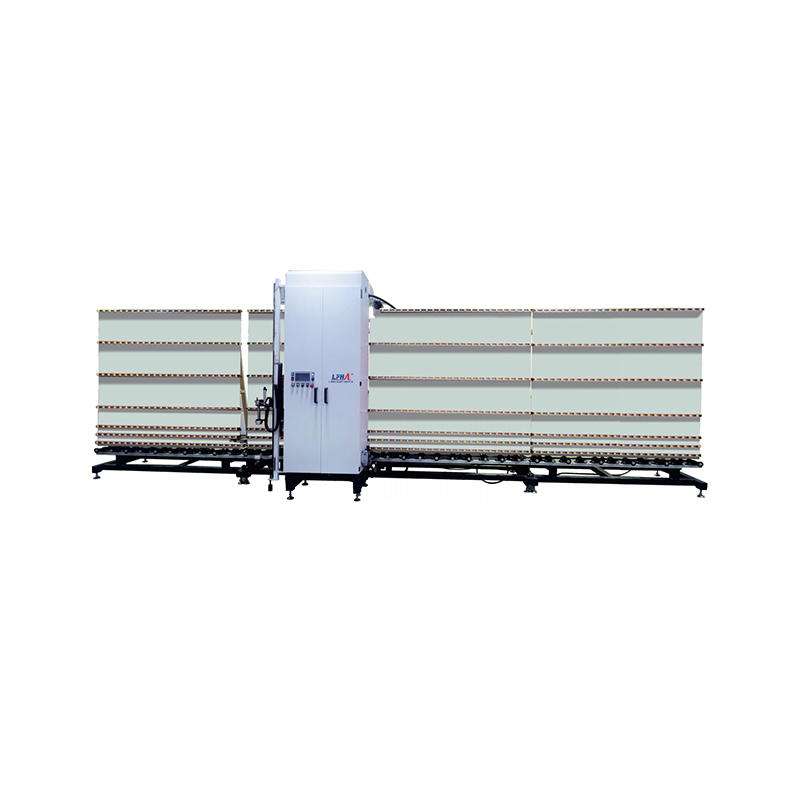

Vertical Insulating Glass Laminating Machine

Vertical Insulating Glass Laminating Machine

LPFM-GL2000-100HP
This equipment is mainly suitable for coating ordinary glass or insulating glass with a thickness of 4~60mm; it is suitable for protective film and stretch film with a film thickness of 0.03~0.1mm.

Consult

Features
Technical Indicators
Overall Dimension

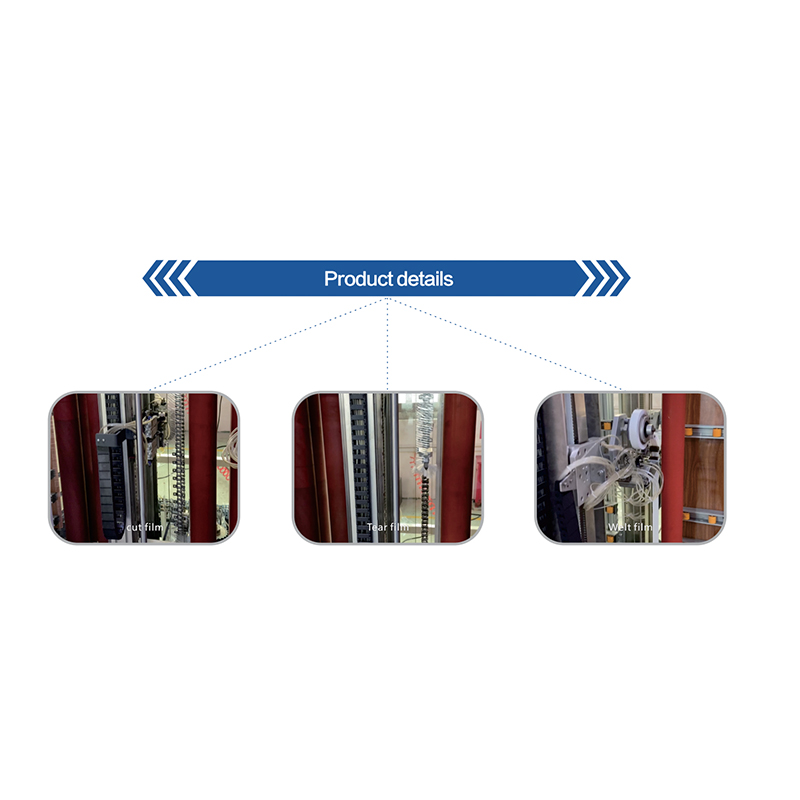

1. The length of the equipment is subject to the actual design, and it is supported by vertical inclined rollers, it can smoothly convey single or hollow glass. 2. PLC+touch screen control system, servo precision control conveying, and the conveying speed is adjustable. 3. Single-sided or double-sided lamination, lamination tension is adjustable. lamination thickness is automatically adjustable, lamination pressure is adjustable. 4. Use rubber rollers with moderate hardness, the pressing force is evenly adjustable, and the backing wheel is smooth and will not cause glass scratches. 5. The glass spacing is automatically controllable, and double-sided shrinkage and cutting of the film are automatically realized, and waste film is automatically discharged. 6. The edge sealing film function can be added around the edges as needed. 7. It can be connected to the hollow line and the unloading table or robot. 8. The frame is painted as a whole, and the appearance is beautiful.
LPFM-GL2000-100HP
Name
Specifications
Unit
Maximum film glass size
3500×1900
mm
Minimum film glass specification
600×200
mm
Suitable for coated glass thickness
4~60
mm
Transfer speed
0~15
m/min
Lnternal shrink film margin
5~50
mm
Upper fragment height
450±30
mm
Power supply
380±5%/50
V/Hz
Air pressure
4~6
kgf/cm²
Backplane tilt angle
6±1
。
Feed table length
3100
mm
Discharge table length
4500
mm
Overall size of equipment
9000×1400×3000
mm
Total equipment power
6.5
KW
Diameter of laminating rubber roller
100
mm
Laminating roll length
2000
mm
Equipment weight
≈2000
kg

LPFM-GL2000-100HP
Name	Specifications	Unit
Maximum film glass size	3500×1900	mm
Minimum film glass specification	600×200	mm
Suitable for coated glass thickness	4~60	mm
Transfer speed	0~15	m/min
Lnternal shrink film margin	5~50	mm
Upper fragment height	450±30	mm
Power supply	380±5%/50	V/Hz
Air pressure	4~6	kgf/cm²
Backplane tilt angle	6±1	。
Feed table length	3100	mm
Discharge table length	4500	mm
Overall size of equipment	9000×1400×3000	mm
Total equipment power	6.5	KW
Diameter of laminating rubber roller	100	mm
Laminating roll length	2000	mm
Equipment weight	≈2000	kg
