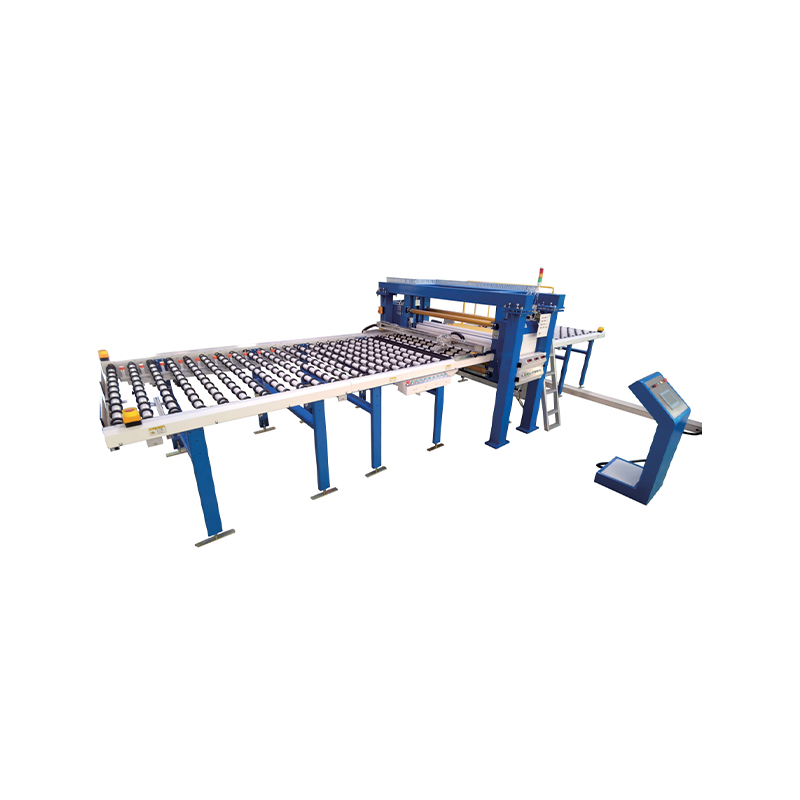

Honeycomb Aluminum Laminating Machine

LPFM-G1600-140HPZ
This equipment is mainly suitable for large electronic glass coating with a thickness of 0.3~4mm and electrostatic film with a thickness of 0.03~0.08mm.

Consult

Features
Technical Indicators
Overall Dimension

1. The feeding can be connected to the cleaning line or directly connected to the robot for loading, and the discharging can be connected to the robot for unloading. It can also be connected to other equipment to realize linkage function. 2. This model has been successfully connected with robots and cleaning machines. 3. It has automatic centering positioning and automatic control of glass spacing. 4. It can realize single-sided or double-sided lamination, and the lamination is flat without bubbles and wrinkles, the cylinder stroke is adjustable. 5. Four-axis film loading can realize the function of fast film replacement, magnetic powder controls the tension and uses the coil diameter constant tension control system. 6. Film cutting: There are three film cutting methods Single-knife film cutting: on the glass The protective film is cut off in the middle of the glass partition, the glass partition is adjustable. Double-knife film cutting: the double knives cut the film along the edge of the glass, the film is flush with the edge of the glass. Inward shrinking film cutting: inward shrinking double-sided film cutting, the film shrinking position is adjustable. 7. The material of the platform roller is styrene-butadiene rubber, which does not scratch the glass. The roller is ground externally to ensure smooth glass transportation without jumping. 8. It has the function of automatic diagnosis of machine faults, which is convenient for maintenance and quick troubleshooting. 9. The power transmission of the platform roller can be selected from synchronous belt drive, bevel gear drive and helical gear drive. 10. Using Siemens PLC+touch screen control system, it can be intelligently connected and controlled.
LPFM-G1600-140HPZ Name Specifications Unit Maximum glass width 1500 mm Minimum glass width 600 mm Maximum glass length 1200 mm Minimum glass length 900 mm Maximum conveying speed 30 m/min Maximum film covering capacity 6 pcs/min Length of covered Cots 1600 mm Diameter of film coated roller 140 mm Equipment input voltage 380/50 V/Hz Total power of equipment 6 KW Platform roller spacing 150mm x 150mm mm Platform roller diameter 70(axis 50) mm Coverage thickness range 0.3~4 mm Maximum feeding size 1200×1500 mm Maximum film diameter 320 mm Combined air pressure 4~6 kg/cm² Length of coated products 1090~1180 mm Width of coated products 1200~1500 mm Hardness of covered Cots 50~55 HS Product positioning interval 26~46 mm Poor film covering accuracy ±1 mm Equipment weight 4000 kg External dimension of equipment 7100×2750×1900 mm

LPFM-G1600-140HPZ
Name	Specifications	Unit
Maximum glass width	1500	mm
Minimum glass width	600	mm
Maximum glass length	1200	mm
Minimum glass length	900	mm
Maximum conveying speed	30	m/min
Maximum film covering capacity	6	pcs/min
Length of covered Cots	1600	mm
Diameter of film coated roller	140	mm
Equipment input voltage	380/50	V/Hz
Total power of equipment	6	KW
Platform roller spacing	150mm x 150mm	mm
Platform roller diameter	70(axis 50)	mm
Coverage thickness range	0.3~4	mm
Maximum feeding size	1200×1500	mm
Maximum film diameter	320	mm
Combined air pressure	4~6	kg/cm²
Length of coated products	1090~1180	mm
Width of coated products	1200~1500	mm
Hardness of covered Cots	50~55	HS
Product positioning interval	26~46	mm
Poor film covering accuracy	±1	mm
Equipment weight	4000	kg
External dimension of equipment	7100×2750×1900	mm
