Robotic Automatic Loading and Unloading

LPJP-LM1311-1600Z0P
This equipment is mainly suitable for electronic glass with a thickness of less than 4mm and protective film of 0.03~0.08mm.

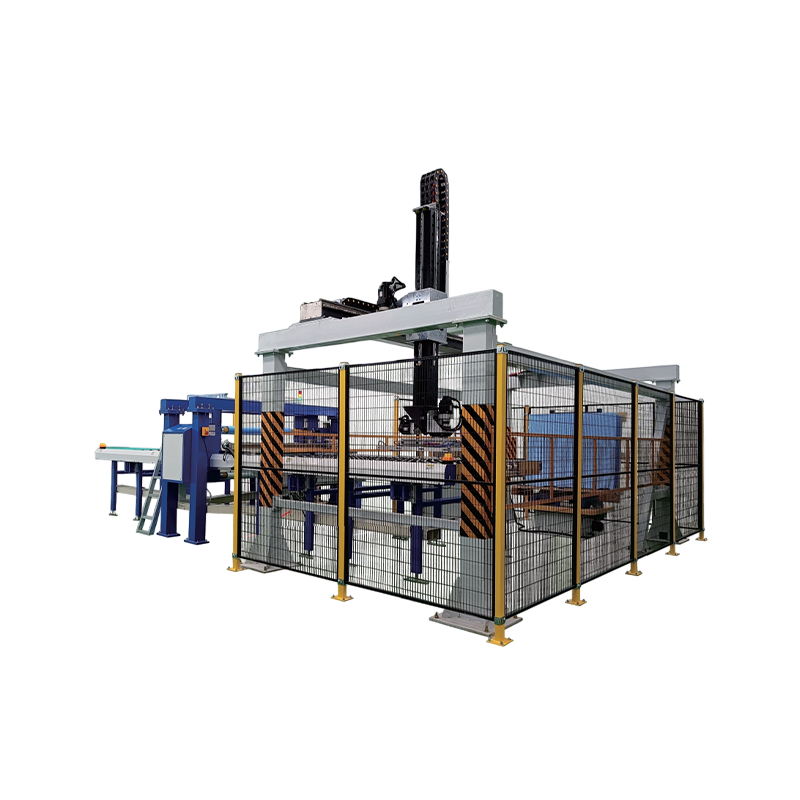

1. It adopts a gantry structure with a lateral movement system, a lifting system, a rotation system, a flip system, and a vacuum adsorption system. 2. It is suitable for loading glass from a vertical glass rack to a horizontal roller line, or from a horizontal roller line to a vertical glass rack. 3. This manipulator has a successful loading and unloading case for a glass cleaning machine + laminating machine. 4. The position of the upper and lower pieces is adjustable, and the speed of each motion system is adjustable, the glass stacking action is smooth. 5. There is extreme position safety protection to prevent exceeding the range of motion and collision. 6. The glass rack table has a 180-degree rotation function in the horizontal direction, which is convenient for loading and unloading. 7. There are safety guardrails and safety locks around the manipulator.
LPJP-LM1311-1600Z0P Project Performance Indicators Performance Glass Size(Auto Mode) 1300×900~1300×1100 mm Glass thickness 0.3~3 mm Repeatability ±2 mm Glass stacking depth 400 mm Automatic up and down action cycle ≥12 s/pcs Roller plane height 1130±20 mm Roll spacing 150 mm Wheel spacing 150 mm Main line conveying roller speed 40 m/min Power supply 380±5% V Low voltage power supply 220±5% V Frequency 50±1% Hz Equipment weight 2000 kg Gas supply 0.35～0.6 Mpa

LPJP-LM1311-1600Z0P
Project	Performance Indicators	Performance
Glass Size(Auto Mode)	1300×900~1300×1100	mm
Glass thickness	0.3~3	mm
Repeatability	±2	mm
Glass stacking depth	400	mm
Automatic up and down action cycle	≥12	s/pcs
Roller plane height	1130±20	mm
Roll spacing	150	mm
Wheel spacing	150	mm
Main line conveying roller speed	40	m/min
Power supply	380±5%	V
Low voltage power supply	220±5%	V
Frequency	50±1%	Hz
Equipment weight	2000	kg
Gas supply	0.35～0.6	Mpa
