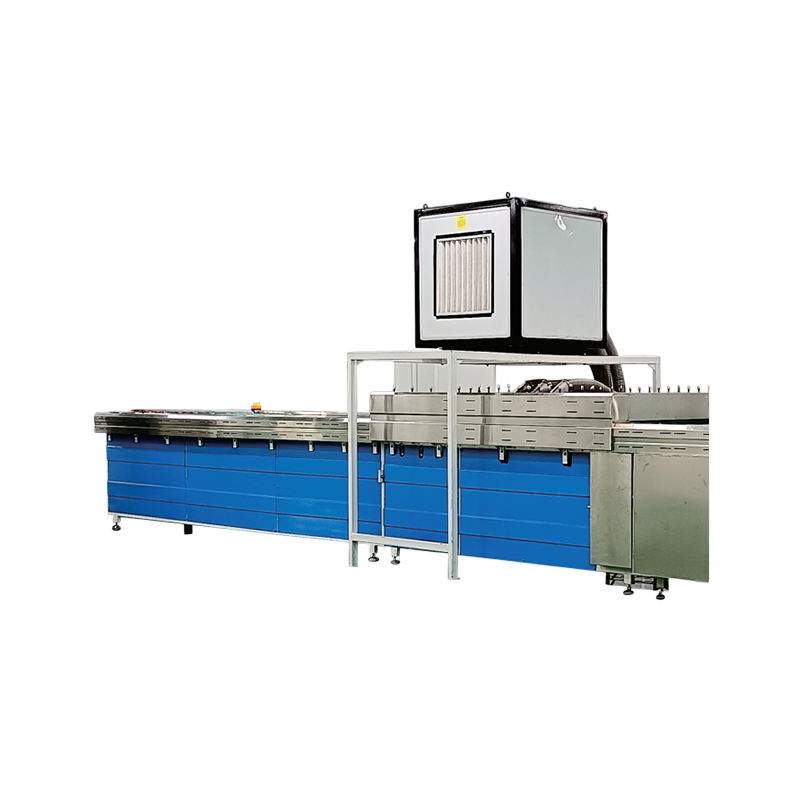

Electronic Glass Washer

LPQS-G2100-50ZP3
This cleaning machine is mainly used for automatic cleaning of thin glass and can adapt to glass thickness of 0.3mm~4mm.

1. The conveyor roller is made of high-quality rubber with moderate hardness. 2. The feeding and discharging platform is powered by a whole rubber-coated roller. 3. Four sets of brush rollers are wrapped with high-quality soft hair. 4. High-pressure blowers and three sets of straight air knives are used. 5. The platform transmission adopts servo motor speed regulation + helical gear transmission. 6. The brush rotation adopts variable frequency motor speed regulation + belt transmission. 7. Siemens PLC control system is used, and touch screen human-computer interaction operation is used. 8. All detection parts use imported photoelectric switches to control the material operation automatically.
LPQS-G2100-50ZP3
Name
Specifications
Unit
Cleaning rubber roller length
1656
mm
Cleaning rubber roller diameter
50
mm
Cleaning rubber roller hardness
85
HS
Rubber roller spacing
100
mm
Length of feeding platform
3000
mm
Outlet platform length
3600
mm
Bristle length
19
mm
Brush diameter
80
mm
Brush length
1650
mm
Shaft diameter
17
mm
Platform width
1600
mm
Platform height
1130±20
mm
Transmission motor
1.5
KW
Brush motor
0.75
KW
Water pump
250
W
Fan
11
KW
Air knife length
1600
mm
Air knife heating tube
1.2
KW
Cleaning speed
5
pcs/min
Device input voltage
380/50
V/Hz
Total equipment power
≈21
KW
Total weight of equipment
≈3500
kg
Washer size
1000×2800×2650
mm

LPQS-G2100-50ZP3
Name	Specifications	Unit
Cleaning rubber roller length	1656	mm
Cleaning rubber roller diameter	50	mm
Cleaning rubber roller hardness	85	HS
Rubber roller spacing	100	mm
Length of feeding platform	3000	mm
Outlet platform length	3600	mm
Bristle length	19	mm
Brush diameter	80	mm
Brush length	1650	mm
Shaft diameter	17	mm
Platform width	1600	mm
Platform height	1130±20	mm
Transmission motor	1.5	KW
Brush motor	0.75	KW
Water pump	250	W
Fan	11	KW
Air knife length	1600	mm
Air knife heating tube	1.2	KW
Cleaning speed	5	pcs/min
Device input voltage	380/50	V/Hz
Total equipment power	≈21	KW
Total weight of equipment	≈3500	kg
Washer size	1000×2800×2650	mm
