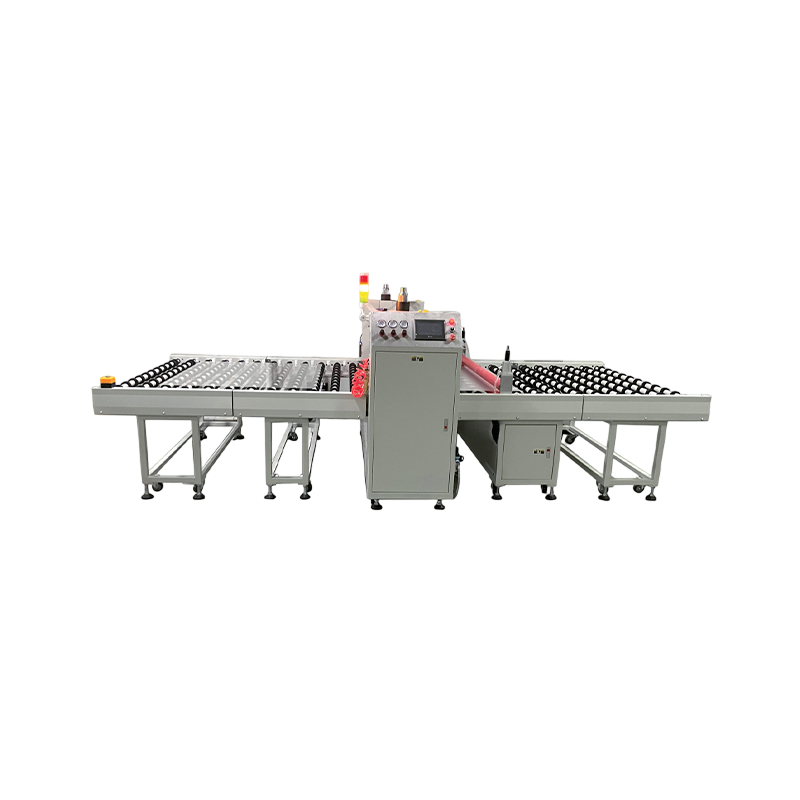

AG Glass Laminating Machine (Upgraded Version)

AG Glass Laminating Machine (Upgraded Version)

LPFM-G1600-150HP
This equipment is mainly suitable for 0.5~5mm AG glass, large glass coating, 0.03~0.1mm acid-resistant film, explosion-proof film and protective film.

Consult

Features
Technical Indicators
Overall Dimension

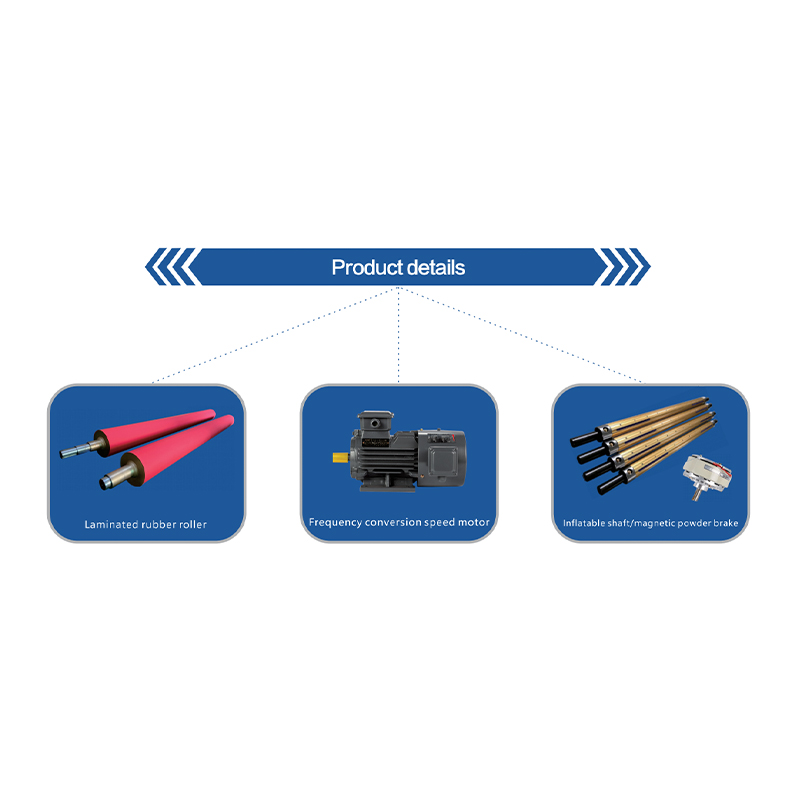

1. The laminating roller is made of high-quality silicone with moderate hardness and pneumatic pressure adjustment. 2. The rubber wheel platform of the anti-scratch product is used, and each platform is driven by an independent servo motor. 3. The Siemens PLC control system is used to complete the operation and parameter setting through the touch screen human-computer interaction interface. 4. The film guide roller is an aluminum alloy tube wrapped with rubber, which can rotate easily without eccentricity, and the film guide is stable and wrinkle-free. 5. The film is placed under magnetic powder tension control, and the film is fixed and rotated on one side to install the film, which is quick and convenient. 6. The laminating pressure cylinder is controlled, the left and right ends can be adjusted separately, and the laminating rubber roller is guided by a linear guide. 7. The laminating thickness is adjustable, and the fine-tuning thickness can be accurate to 0.02mm. 8. There are automatic centering positioning functions and front positioning functions to make the glass conveying position more accurate. 9. There is an automatic film cutting function after laminating, and the double knives cut the film along the edge of the glass, and the film is flush with the edge of the glass.
LPFM-G1600-150HP Name Specifications Unit Transfer speed 0-25(adjustable) m/min Capacity >200 pcs/h Lamination roller hardness 55±3 HS Platform Roller Length/Diameter 1600/70 mm Platform roller spacing 150mm x 150mm mm Platform length 1810 mm Platform width 1600 mm Platform height 800±10 mm Laminated product length 600~2500 mm Laminated product width 600~1500 mm Laminate thickness range 0.5~5 mm Product positioning interval 5~10 mm Maximum film diameter 300 mm Lamination accuracy ±1 mm Use air pressure 4~6 kg/cm² Total equipment power ≈3 KW Device input voltage 380/50 V/Hz Clean room style 10000 pcs/m³ Device Dimensions 4200×2560×1450 mm Total weight of equipment ≈3000 kg

LPFM-G1600-150HP
Name	Specifications	Unit
Transfer speed	0-25(adjustable)	m/min
Capacity	>200	pcs/h
Lamination roller hardness	55±3	HS
Platform Roller Length/Diameter	1600/70	mm
Platform roller spacing	150mm x 150mm	mm
Platform length	1810	mm
Platform width	1600	mm
Platform height	800±10	mm
Laminated product length	600~2500	mm
Laminated product width	600~1500	mm
Laminate thickness range	0.5~5	mm
Product positioning interval	5~10	mm
Maximum film diameter	300	mm
Lamination accuracy	±1	mm
Use air pressure	4~6	kg/cm²
Total equipment power	≈3	KW
Device input voltage	380/50	V/Hz
Clean room style	10000	pcs/m³
Device Dimensions	4200×2560×1450	mm
Total weight of equipment	≈3000	kg
