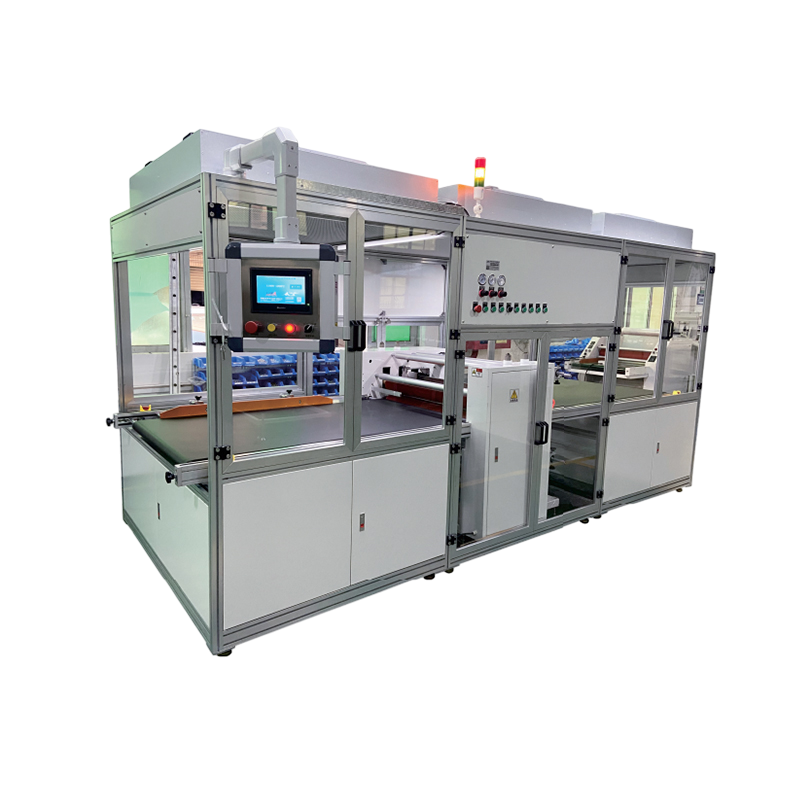

Electronic Glass Laminating Machine

LPFM-S1000-120P2
Suitable for electronic glass with a thickness of 0.55~2mm, and suitable for PVC, PE protective film and electrostatic film with a thickness of 0.02~0.2mm.

Consult

Features
Technical Indicators
Overall Dimension

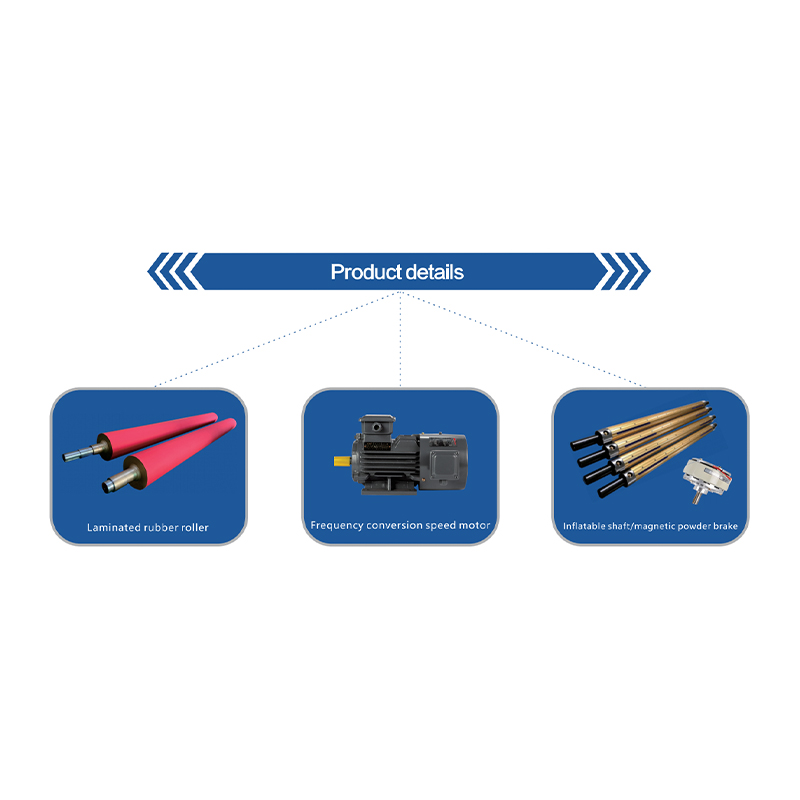

1. Two groups of rubber rollers, the first group is the laminating rubber roller, and the second group is the auxiliary pressure roller for film cutting. 2. Single-sided or double-sided lamination, the laminating pressure is controlled by air pressure, and the lamination is uniform without bubbles. 3. The pressure of the laminating part is pneumatically adjusted independently on the left and right sides, which is convenient for adjusting the pressure balance at both ends of the rubber. 4. The inlet/outlet platform adopts an anti-static conveyor belt, and the feed conveyor belt has a dust removal function and an adjustable positioning baffle. 5. The film is released by magnetic powder tension control, with one roll of film on the top and the bottom, and a single-arm suspended film loading method, which is convenient and fast to operate. 6. It has an automatic film cutting function, which can realize single-knife bidirectional back and forth film cutting to improve production efficiency. 7. It is driven by a servo motor and controlled by PLC+touch screen. 8. The whole machine has an independent clean room and three groups of FFU filter fans.
LPFM-S1000-120P2
Name
  Specifications
  Unit
Electronic glass laminating machine
  1600
  mm
Outlet platform length
  1900
  mm
Conveying platform height
  790±25
  mm
Effective length of rubber roller
  1000
  mm
Diameter of laminating rubber roller
  120
  mm
Lamination roller hardness
  55~60
  HS
Effective Lamination Width
  950
  mm
Product thickness range
  0.55~2
  mm
The upper limit of the film diameter
  300
  mm
Fits product size
  400×400~1500×800
  mm
Control glass spacing
  10~200
  mm
Speed adjustable range
  0~15
  m/min
Power supply
  220/50
  V/Hz
Total equipment power
  ≈1.5
  KW
Gas source
  4~6
  kgf/cm²
Device Dimensions
  4000×1800×1200
  mm

LPFM-S1000-120P2
Name	Specifications	Unit
Electronic glass laminating machine	1600	mm
Outlet platform length	1900	mm
Conveying platform height	790±25	mm
Effective length of rubber roller	1000	mm
Diameter of laminating rubber roller	120	mm
Lamination roller hardness	55~60	HS
Effective Lamination Width	950	mm
Product thickness range	0.55~2	mm
The upper limit of the film diameter	300	mm
Fits product size	400×400~1500×800	mm
Control glass spacing	10~200	mm
Speed adjustable range	0~15	m/min
Power supply	220/50	V/Hz
Total equipment power	≈1.5	KW
Gas source	4~6	kgf/cm²
Device Dimensions	4000×1800×1200	mm
