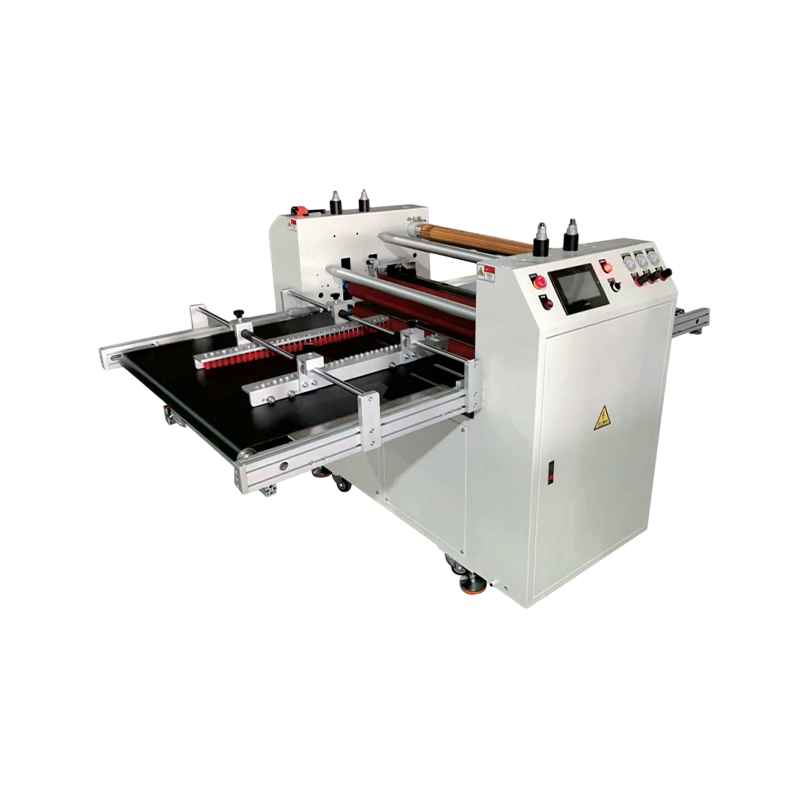

Home Appliance Glass Laminating Machine

LPFM-S1000-80HP2
Suitable for 2~10mm thick home appliance glass, aluminum plate, acrylic plate covered with 0.02~0.1mm protective film

Consult

Features
Technical Indicators
Overall Dimension

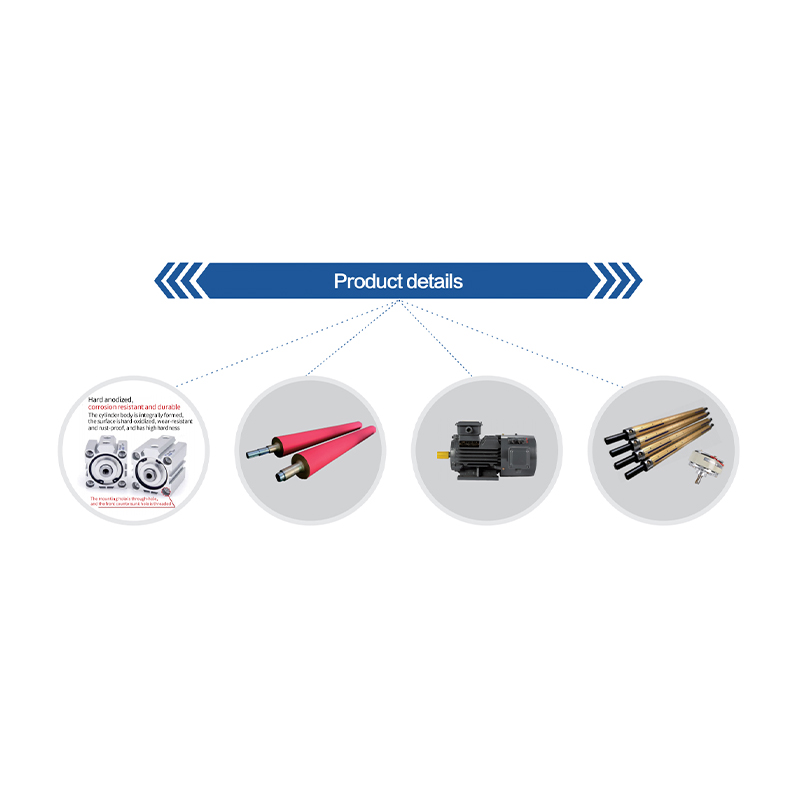

1. Two groups of rubber rollers, the first group is the laminating rubber roller, and the second group is the film cutting and auxiliary pressure roller. 2. Single-sided lamination, the laminating effect is uniform without wrinkles and bubbles. 3. The laminating thickness is adjustable and easy to adjust, and the laminating pressure is pneumatically adjusted. 4. The inlet/outlet platform adopts an anti-static conveyor belt, and the inlet end can be connected to the production line for use. 5. There are adjustable eight-shaped roller positioning baffles on both sides of the feed, and the product automatically flows in and automatically centers. 6. The air shaft is used to install the film, and the film is installed by rotating on one side, which is quick and convenient, and the film tension is adjustable. 7. Automatic film cutting function, using a single knife to cut the film back and forth in both directions to improve production efficiency. 8. Servo motors are used for conveying and laminating, with adjustable speed and PLC+touch screen control.
LPFM-S1000-80HP2
Name
Specifications
Unit
In/Out Conveyor Belt Platform Length
1000
mm
Platform width
1000
mm
Platform height
900±25
mm
Rubber roller hardness
55~60
HS
Outer diameter of rubber roller
80
mm
Roller effective length
1000
mm
Effective Lamination Width
900
mm
Film diameter
300
mm
Thickness range of coated products
2~10
mm
Product positioning interval
10~20
mm
Speed adjustable range
0~30
m/min
Power supply
220/50
V/Hz
Total equipment power
≈1
KW
Overall dimensions
2230×1550×1400
mm

LPFM-S1000-80HP2
Name	Specifications	Unit
In/Out Conveyor Belt Platform Length	1000	mm
Platform width	1000	mm
Platform height	900±25	mm
Rubber roller hardness	55~60	HS
Outer diameter of rubber roller	80	mm
Roller effective length	1000	mm
Effective Lamination Width	900	mm
Film diameter	300	mm
Thickness range of coated products	2~10	mm
Product positioning interval	10~20	mm
Speed adjustable range	0~30	m/min
Power supply	220/50	V/Hz
Total equipment power	≈1	KW
Overall dimensions	2230×1550×1400	mm
