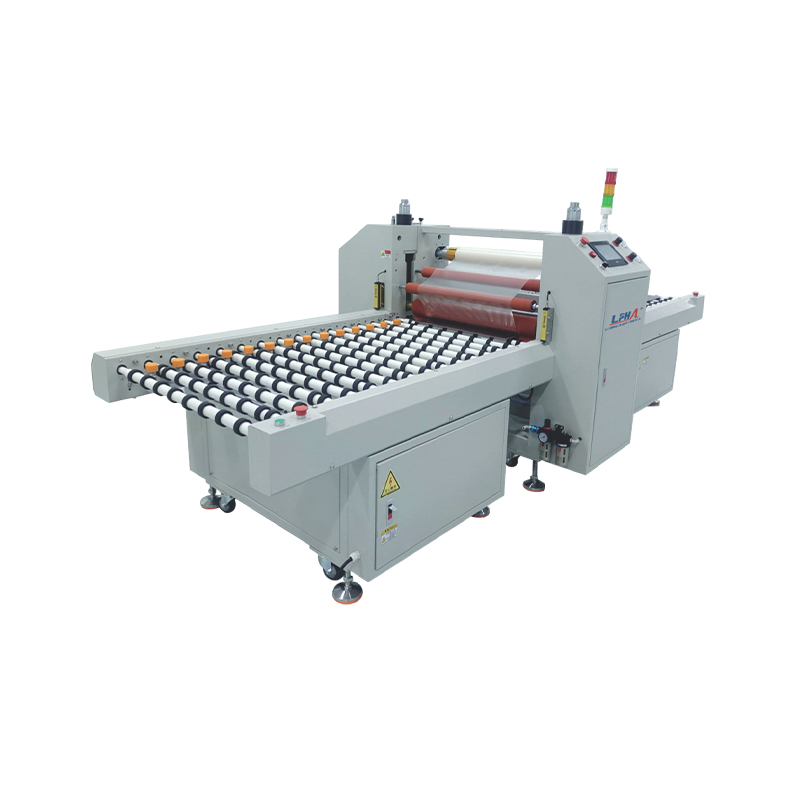

Aluminum Plate Glass Laminating Machine

LPFM-G800-100HP
This equipment is mainly suitable for 0.5~3mm thick aluminum plates covered with 0.02~0.1mm thick protective films.

Consult

Features
Technical Indicators
Overall Dimension

1. Laminating roller: Made of high-quality silicone rubber with moderate hardness, linear guide rails are used for lifting. 2. Laminating pressure: pneumatic pressure, uniform laminating without bubbles, and independent pressure adjustment on the left and right sides of the upper roller. 3. Thickness adjustment: Thickness adjustment uses a thousandth scale adjustment with an accuracy of 0.02mm. 4. Platform: rubber-coated platform wheel, which is processed by external cylindrical grinding for smooth transportation without jumping. 5. Positioning: A positioning column is installed on the left side of the feed, there is a positioning photoelectric at the laminating entrance to control the product spacing. 6. Film placement: The upper single-sided air shaft is used to install the film, fixed on one side, and the other end is rotated out To install the film, it is convenient and quick to install and change the film. 7. Film cutting: After laminating, there is an automatic film cutting function, which cuts in the middle of the two plates with one knife, and the single knife cuts the film back and forth in both directions. 8. Tension control: The film roll tension is controlled by a magnetic powder brake, and the laminating tension is output stably using PLC control. 9. Film guide roller: The film guide roller is an aluminum alloy tube with rubber, which rotates without eccentricity or swinging, making the film guide more stable and wrinkle-free. 10. Transmission: The laminating and feeding/discharging platforms are all driven by servo motors, and the transmission position is accurate. 11. Control: Use PLC+touch screen control system, human-computer interactive operation. There is an automatic fault alarm function.
LPFM-G800-100HP
Name
Specifications
Unit
Length of film covered cot
800
mm
Diameter of film covered cot
100
mm
Hardness of covered Cots
70±3
HS
Feed/discharge platform roll length
800
mm
Feed /discharge platform roll diameter
50
mm
Length of feeding platform
1500
mm
Length of discharge platform
1650
mm
Platform width
800
mm
Platform height
700±25
mm
Length of coated products
900~1300
mm
Width of coated products
500~700
mm
Coverage thickness range
0.5~3
mm
Product positioning interval
3~5
mm
Maximum discharge diameter
300
mm
Inner cylinder diameter
3
in
Range of compound speed regulation
0~25
m/min
Combined air pressure
4~6
kg/cm²
Motor power of feed platform
750
W
Motor power of discharging platform
750
W
Cutting motor power
400
W
Motor power of main engine
750
W
Temperature range of use
≈3
KW
Equipment input voltage
380/50
V/Hz
Total weight of equipment
≈1000
kg
Equipment dimensions
3700×1700×1400
mm

LPFM-G800-100HP
Name	Specifications	Unit
Length of film covered cot	800	mm
Diameter of film covered cot	100	mm
Hardness of covered Cots	70±3	HS
Feed/discharge platform roll length	800	mm
Feed /discharge platform roll diameter	50	mm
Length of feeding platform	1500	mm
Length of discharge platform	1650	mm
Platform width	800	mm
Platform height	700±25	mm
Length of coated products	900~1300	mm
Width of coated products	500~700	mm
Coverage thickness range	0.5~3	mm
Product positioning interval	3~5	mm
Maximum discharge diameter	300	mm
Inner cylinder diameter	3	in
Range of compound speed regulation	0~25	m/min
Combined air pressure	4~6	kg/cm²
Motor power of feed platform	750	W
Motor power of discharging platform	750	W
Cutting motor power	400	W
Motor power of main engine	750	W
Temperature range of use	≈3	KW
Equipment input voltage	380/50	V/Hz
Total weight of equipment	≈1000	kg
Equipment dimensions	3700×1700×1400	mm
