Honeycomb Aluminum Laminating Machine

LPFM-G1600-200D2
Applicable to honeycomb aluminum panels, flat panels, glass, etc. with a thickness of 2~20mm and a width of 800~1800mm: Applicable to the cold lamination process and the automatic waste discharge process of double-sided adhesive tape; Applicable to two processes at the same time.

Consult

Features
Technical Indicators
Overall Dimension

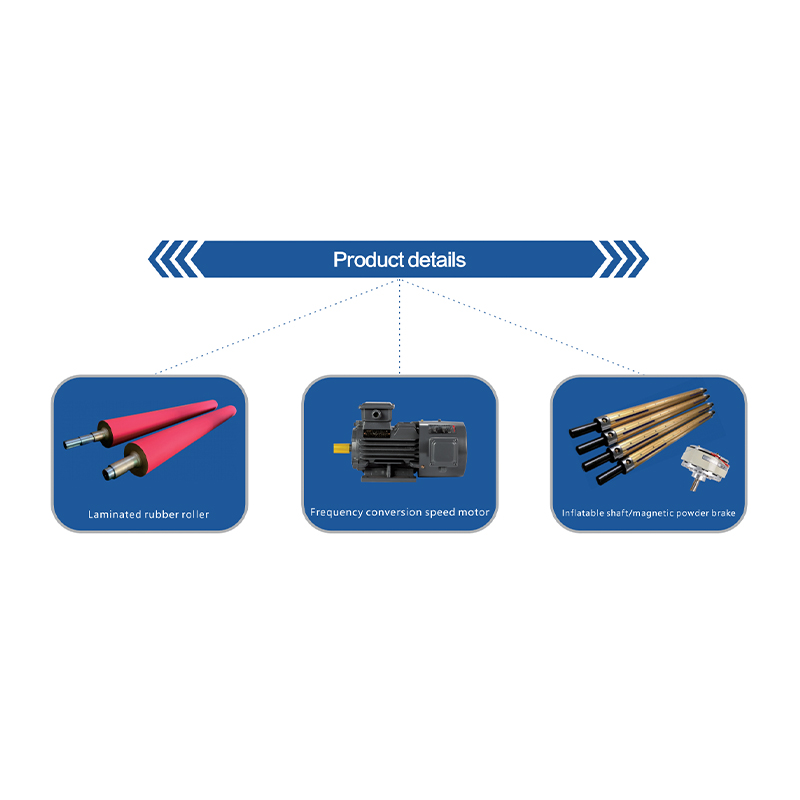

1. With automatic waste discharge (bottom paper) function. 2. Gluing and film coating are carried out at the same time, saving time. 3. The pressure roller force can be adjusted separately to balance the pressure. 4. Use a rubber-coated roller platform to avoid scratching the board surface. The platform roller is unpowered and can rotate freely. 5. Two film coating units, the first one coats double-sided tape and discharges waste, and the second one coats the film. 6. A slope platform is designed to place the film, and there is a positioning device to facilitate the alignment of the film and the board. 7. Use an inflatable shaft for loading and filming, and the tension is controlled by magnetic powder tension. 8. The hardness of the film coating roller is moderate and will not cause pressure damage to the honeycomb board. 9. The cylinder stroke is adjustable, which is convenient for adjusting the cylinder downward stroke according to the thickness of the board.
LPFM-G1600-200D2
Name
Specifications
Unit
Device input voltage
380/50
V/Hz
Lamination roller diameter
200
mm
Length of covered Cots
1600
mm
Lamination roller hardness
50±3
HS
Lamination group interval length
4000
mm
Feeding platform length
3000
mm
Outlet platform length
3250
mm
Laminated product width
800~1500
mm
Platform Roller Diameter
80
mm
Platform Roller Spacing
300
mm
Maximum film diameter
300
mm
Platform height
800
mm
Lnner cylinder diameter
75
mm
Maximum waste diameter
250
mm
Use air pressure
4~6
kg/cm²
Laminate thickness range
2~20
mm
Scrap shaft motor
120
W
Laminated motor
2200
W
Magnetic powder brake
2.5
KG
Diaphragm platform slope
15±3
o
Lamination speed range
0~10
m/min
Total equipment power
4.5
KW
Dimensions
11000x2200x1450
mm

LPFM-G1600-200D2
Name	Specifications	Unit
Device input voltage	380/50	V/Hz
Lamination roller diameter	200	mm
Length of covered Cots	1600	mm
Lamination roller hardness	50±3	HS
Lamination group interval length	4000	mm
Feeding platform length	3000	mm
Outlet platform length	3250	mm
Laminated product width	800~1500	mm
Platform Roller Diameter	80	mm
Platform Roller Spacing	300	mm
Maximum film diameter	300	mm
Platform height	800	mm
Lnner cylinder diameter	75	mm
Maximum waste diameter	250	mm
Use air pressure	4~6	kg/cm²
Laminate thickness range	2~20	mm
Scrap shaft motor	120	W
Laminated motor	2200	W
Magnetic powder brake	2.5	KG
Diaphragm platform slope	15±3	o
Lamination speed range	0~10	m/min
Total equipment power	4.5	KW
Dimensions	11000x2200x1450	mm
