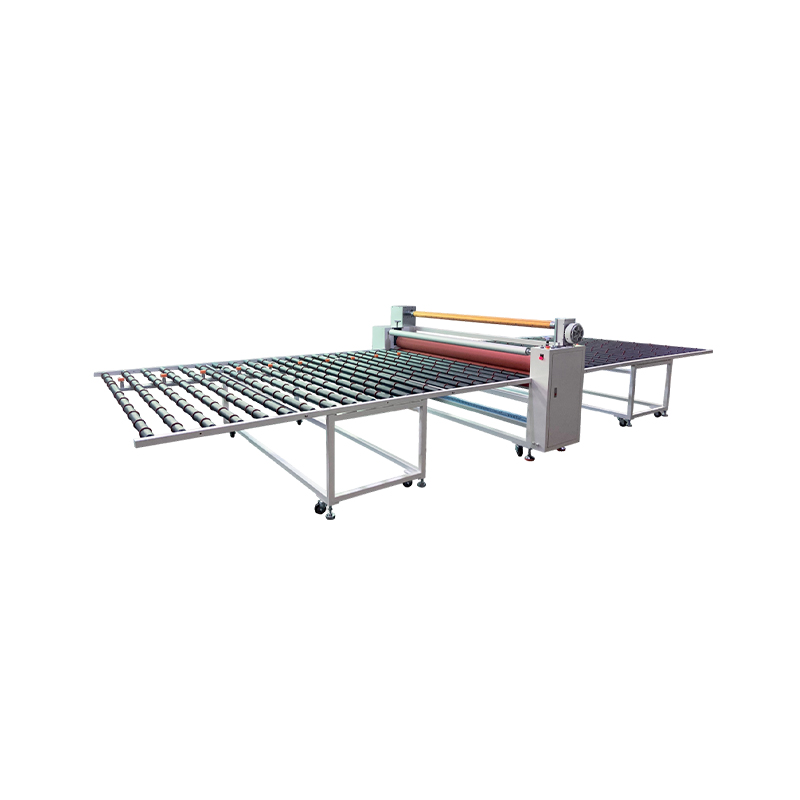

Aluminum Plate Laminating Machine

LPFM-J2100-150D
Suitable for single-sided lamination of 1~15mm thick aluminum plates, iron plates, stainless steel plates, 2~15mm thick acrylic plates, suitable for 0.02~0.1mm thick PVC and PE protective films.

Consult

Features
Technical Indicators
Overall Dimension

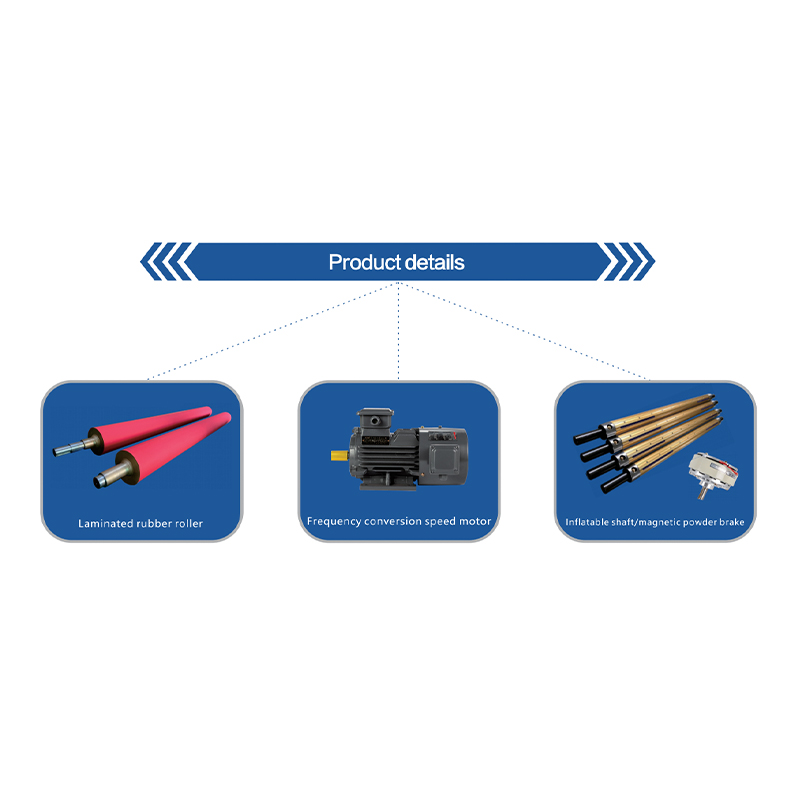

1. Feeding and discharging platform: galvanized roller sleeve + rubber ring, without power, with anti-corrosion and anti-scratch effect. 2. Side positioning mechanism: There is a positioning column on the left side of the feeding platform, and the positioning width can be adjusted manually. 3. Laminating method: a set of laminating rubber rollers, single-sided laminating. 4. Film loading method: using an inflatable shaft, magnetic powder to control the film tension. 5. Laminating pressure: manual adjustment of the screw rod (configurable cylinder pressure). 6. Laminating power: gear reduction motor, variable frequency speed regulation. 7. Film guide roller: aluminum tube processing oxidation, with static elimination function. 8. Laminating effect: no wrinkles, no bubbles.
LPFM-J2100-150D
Name
  Specifications
Unit
Effective length of rubber roller
  2100
mm
Effective Lamination Width
  2000
mm
Rubber roller diameter
  150
mm
Rubber roller hardness
  60±2
HS
In/Out Platform Length
  3000
mm
Platform effective width
  2100
mm
Platform height
  760
mm
Platform drum outer diameter
  50
mm
Roller spacing
  150
mm
Film diameter
  300
mm
Air shaft specification
  75
mm
Laminated product thickness range
  1~15
mm
Protective film thickness
  0.02~0.2
mm
Speed adjustable range
  0~10
m/min
Power/Noltage
  1.5/220
KW/V
Overall dimensions
  6500×2600×1300
mm

LPFM-J2100-150D
Name	Specifications	Unit
Effective length of rubber roller	2100	mm
Effective Lamination Width	2000	mm
Rubber roller diameter	150	mm
Rubber roller hardness	60±2	HS
In/Out Platform Length	3000	mm
Platform effective width	2100	mm
Platform height	760	mm
Platform drum outer diameter	50	mm
Roller spacing	150	mm
Film diameter	300	mm
Air shaft specification	75	mm
Laminated product thickness range	1~15	mm
Protective film thickness	0.02~0.2	mm
Speed adjustable range	0~10	m/min
Power/Noltage	1.5/220	KW/V
Overall dimensions	6500×2600×1300	mm
