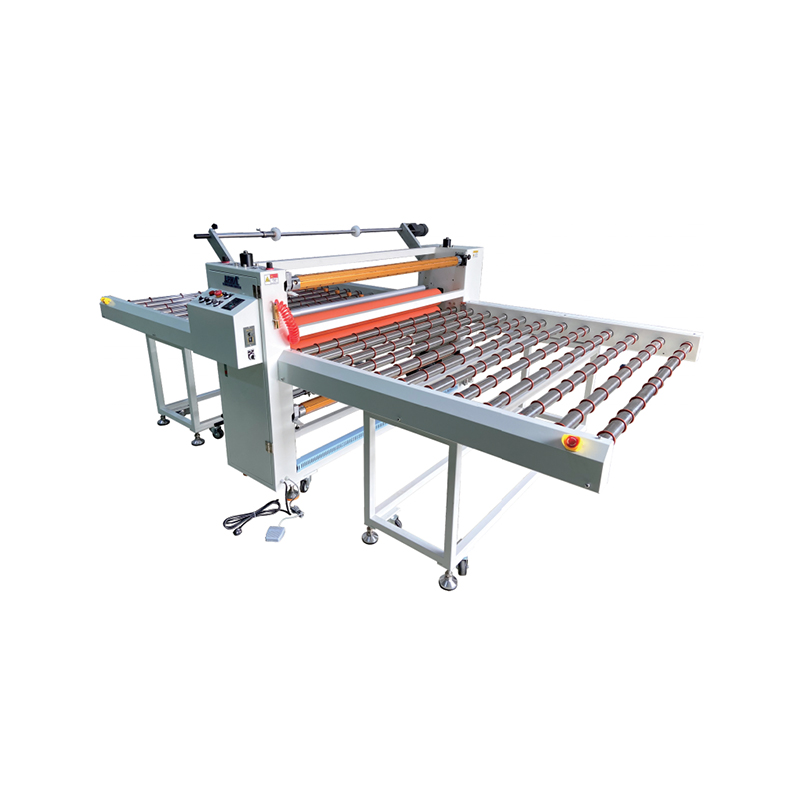

Roller Platform Glass Laminating Machine

FM-G1600-140B
Suitable for laminating all kinds of plates, thickness 1~15mm, protective film thickness 0.03~0.1mm. Single-sided laminating (can be changed to laminating on both sides at the same time), stainless steel roller platform with power, one end of the air shaft is fixed, and the other end rotates and swings out to install the film, simple to operate, with waste collection function.

Consult

Features
Technical Indicators
Overall Dimension

1. Single-sided or double-sided lamination is optional, and the air shaft can be rotated and swung out to install the film, which is convenient and quick. 2. The upper film has a release film collection function to facilitate the glass to be covered with explosion-proof film, and the lamination and waste collection speeds are separately adjustable and controllable. 3. The lamination tension is adjustable, and the lamination pressure is pneumatically adjusted. 4. The feeding and unloading platform uses a stainless steel roller with a silicone ring to prevent scratches on the product. 5. The feeding platform has a side positioning column, which is level with this column when loading the board. 6. Simple and concise operation panel, easy to operate, the host and platform are equipped with emergency stop, which is convenient for abnormal shutdown.
FM-G1600-140B
Name
Specifications
Unit
Diameter of laminating rubber roller
140
mm
Lagging length
1600
mm
Film diameter
400
mm
Platform Roller Diameter
50
mm
Roller center spacing
145
mm
Platform height
870±20
mm
Ln/Out Platform Length
1580
mm
Adjustable speed
0~14
m/min
Voltage
220
V
Total equipment power
750
W

FM-G1600-140B
Name	Specifications	Unit
Diameter of laminating rubber roller	140	mm
Lagging length	1600	mm
Film diameter	400	mm
Platform Roller Diameter	50	mm
Roller center spacing	145	mm
Platform height	870±20	mm
Ln/Out Platform Length	1580	mm
Adjustable speed	0~14	m/min
Voltage	220	V
Total equipment power	750	W
