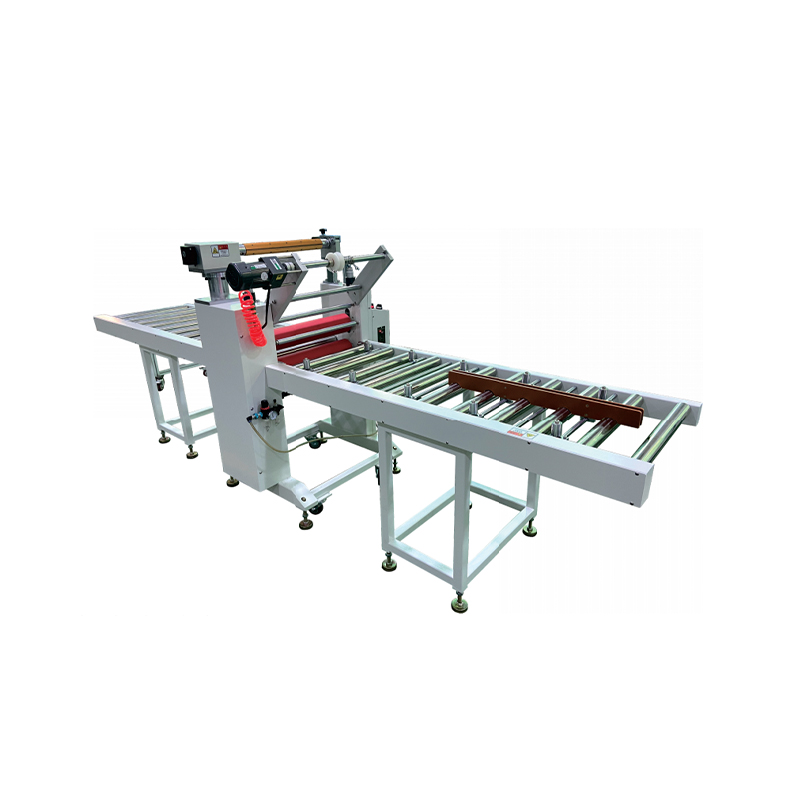

Home Wood Board Laminating Machine

LPFM-G500-100B
Suitable for covering all kinds of household panels or other types of panels with protective film.

1. Single-sided lamination, the upper air shaft rotates and swings out to load the film, which is convenient and fast, and has the function of collecting the release film. 2. Wear-resistant rubber lamination roller is used, the lamination tension is adjustable, and the lamination pressure is pneumatically adjusted. 3. The platform uses a stainless steel roller, and the feed is equipped with left and right double positioning baffles and baffle columns, which can realize the simultaneous lamination of the left and right boards and improve the lamination efficiency.
LPFM-G500-100B
Name
Specifications
Unit
Diameter of laminating rubber roller
100
mm
Film diameter
300
mm
Platform Roller Diameter
50
mm
Roller center spacing
145
mm
Platform height
790±20
mm
Platform inner width
550
mm
Ln/Out Platform Length
1555
mm
Overall device width
992
mm
Overall height of equipment
1310
mm
Total length of equipment
3414
mm
Adjustable speed
0~14
m/min
Voltage
220
V
Laminated motor
120
W
Total equipment power
200
W

LPFM-G500-100B
Name	Specifications	Unit
Diameter of laminating rubber roller	100	mm
Film diameter	300	mm
Platform Roller Diameter	50	mm
Roller center spacing	145	mm
Platform height	790±20	mm
Platform inner width	550	mm
Ln/Out Platform Length	1555	mm
Overall device width	992	mm
Overall height of equipment	1310	mm
Total length of equipment	3414	mm
Adjustable speed	0~14	m/min
Voltage	220	V
Laminated motor	120	W
Total equipment power	200	W
