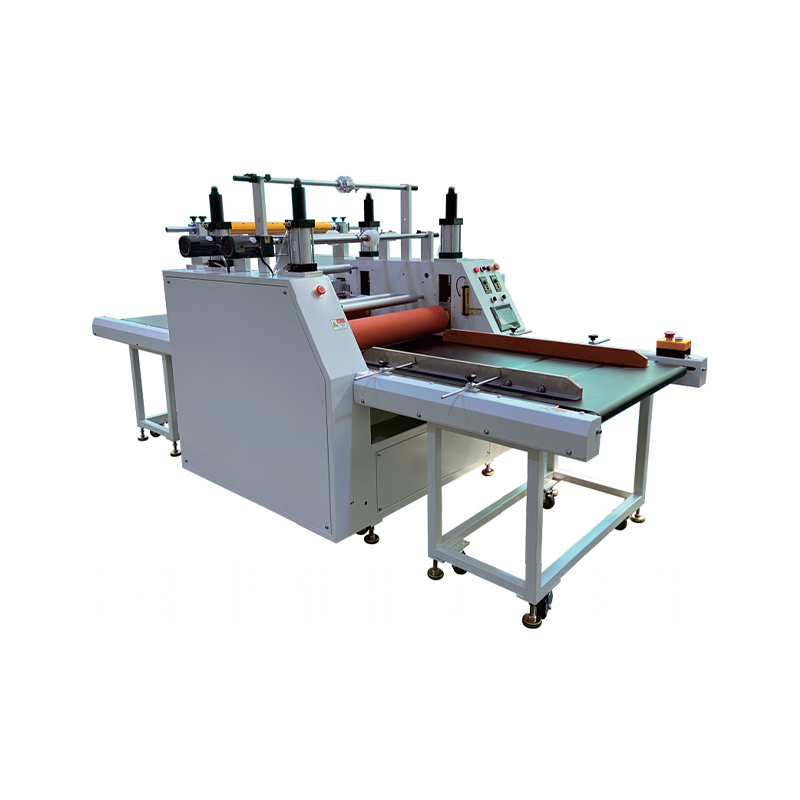

High-grade Conveyor Belt Type Laminating Machine

High-grade Conveyor Belt Type Laminating Machine

LPFM-R800-150HP2
It is suitable for single-sided coating of protective film and decorative film on flat products such as glass, metal sheets, plastic sheets, wood boards, fiberboards, etc.

Consult

Features
Technical Indicators
Overall Dimension

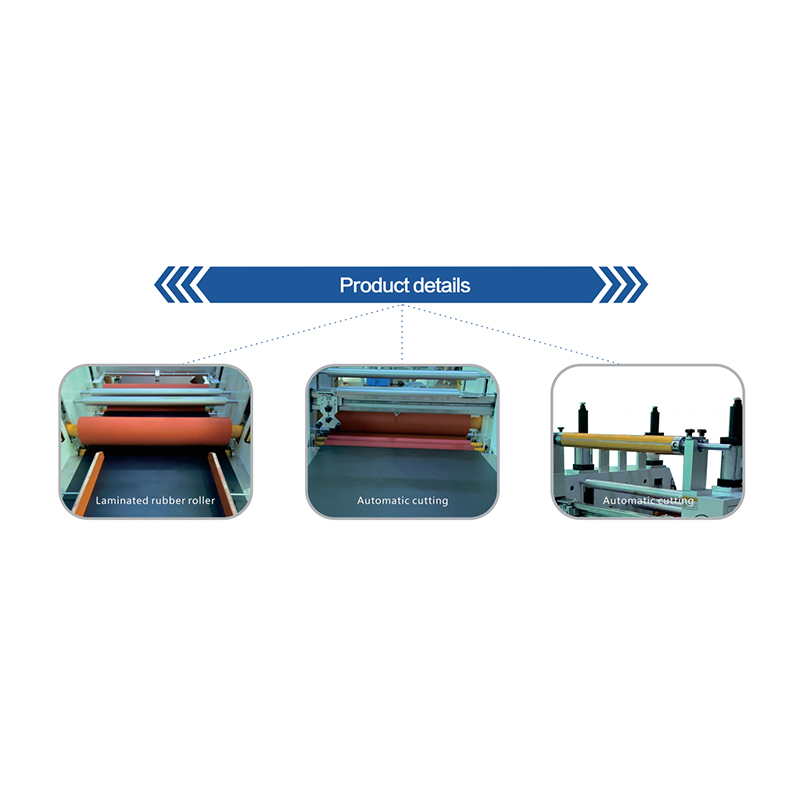

1. There is an adjustable positioning baffle for feeding, and the baffle is flat when discharging. 2. Single-sided double-layer lamination, the first layer is covered with double-sided tape and the front and back belts are automatically collected, and the second layer is covered with protective film. 3. The film is installed on the air shaft, the lamination pressure is pneumatically adjusted, and the lamination thickness is adjustable, the lamination power is driven by a speed-regulating motor with adjustable speed. 4. Two groups of laminating rubber rollers, the front group is cold laminating, and the rear group is heated laminating, with automatic feeding, automatic positioning, automatic laminating, automatic film cutting and other functions. 5. There is an automatic film cutting device behind the second group of laminating rollers, and the photoelectric sensor plate cuts the film at intervals. 6. The use of PLC+touch screen control and operating system makes the operating performance more stable and more convenient.
LPFM-R800-150HP2
Name
Specifications
Unit
Laminating roller length
800
mm
Diameter of laminating rubber roller
150
mm
Platform Roller Spacing
150
mm
Feed platform length
1200
mm
Outlet platform length
1200
mm
Total length of the platform
3200
mm
Platform height
800±20
mm
Discharge product interval
5~50
mm
Rated power
7
KW
Maximum film diameter
300
mm
Maximum operating speed
15
m/min
Laminated product thickness
5~80
mm
Use air pressure
0.4~0.6
mpa
Rated voltage
380
V
Total weight of equipment
≈3000
kg
Device Dimensions
3400×1600×1600
mm

LPFM-R800-150HP2
Name	Specifications	Unit
Laminating roller length	800	mm
Diameter of laminating rubber roller	150	mm
Platform Roller Spacing	150	mm
Feed platform length	1200	mm
Outlet platform length	1200	mm
Total length of the platform	3200	mm
Platform height	800±20	mm
Discharge product interval	5~50	mm
Rated power	7	KW
Maximum film diameter	300	mm
Maximum operating speed	15	m/min
Laminated product thickness	5~80	mm
Use air pressure	0.4~0.6	mpa
Rated voltage	380	V
Total weight of equipment	≈3000	kg
Device Dimensions	3400×1600×1600	mm
