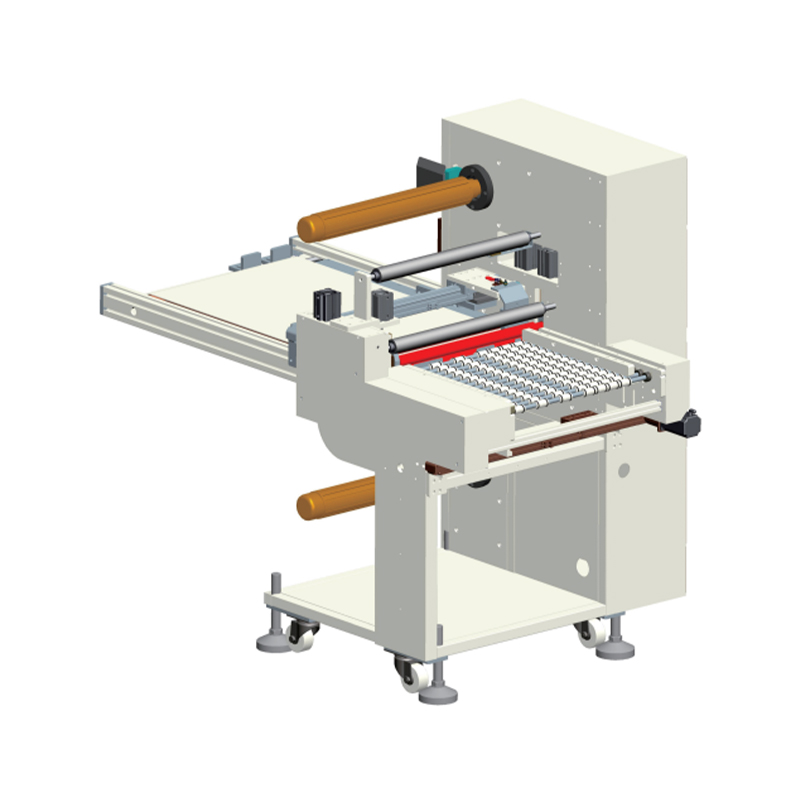

Mobile Phone Cover Glass Laminating Machine

LPFM-S400-40HP
Applicable to panel size 5~17" (minimum: 30X60, maximum: 280X420mm); glass thickness 0.15~1mm.

Consult

Features
Technical Indicators
Overall Dimension

1. The front platform of the laminating machine blocks the product with the front cylinder and positions the module on one side before flowing into the laminating roller. 2. After the laminating roller comes out, it flows into the belt line at the rear end of the laminating machine. 3. After the mobile phone cover completely flows out of the laminating machine, the module cutter cuts the film. 4. The transmission is stable, and the CV roller is made of anti-static UPE material. 5. The panel should not be damaged during the flow. 6. Double-sided film, uniform film effect without bubbles, manual expansion shaft film installation, single suspended film installation method, film release tension is controlled by magnetic powder tension, and film pressure is pneumatically adjusted (with digital display). 7. The material discharging has an automatic film cutting mechanism, and the film is cut reciprocatingly with one knife. 8. The material discharging end of the equipment can be connected to the inkjet printer. 9. There must be an anti-overshoot sensor at the end of the material discharging. When the material rushes to the sensor position but is not taken away, the laminating machine needs to stop working. 10. The operation screen has one-key switching, and the relevant size formula is saved in the system.
LPFM-S400-40HP
  Name
Specifications
Unit
  Device input voltage
220/50
V/Hz
  Total equipment power
400
W
  Diameter of laminating rubber roller
40
mm
  Laminating roller length
400
mm
  Feed platform height
800
mm
  Outlet platform height
800
mm
  Feed platform length
330
mm
  Outlet platform length
500
mm
  Platform width
500
mm
  Maximum film diameter
300
mm
  Minimum film width
60
mm
  Maximum film width
350
mm
  Discharge product interval
3~5
mm
  Laminate thickness range
0.3~1.2
mm
  Roller diameter
30
mm
  Roller shaft clearance
30
mm
Lamination accuracy(width)
0.5~2.5
mm
Film cutting accuracy
±1
mm
Cover pressure range
1~5
kgf/cm²
Lamination speed range
2~12
m/min
Device Dimensions
945×650×610
mm
Transverse film cutting stroke
400
mm
Total weight of equipment
≈100
kg

LPFM-S400-40HP
Name	Specifications	Unit
Device input voltage	220/50	V/Hz
Total equipment power	400	W
Diameter of laminating rubber roller	40	mm
Laminating roller length	400	mm
Feed platform height	800	mm
Outlet platform height	800	mm
Feed platform length	330	mm
Outlet platform length	500	mm
Platform width	500	mm
Maximum film diameter	300	mm
Minimum film width	60	mm
Maximum film width	350	mm
Discharge product interval	3~5	mm
Laminate thickness range	0.3~1.2	mm
Roller diameter	30	mm
Roller shaft clearance	30	mm
Lamination accuracy(width)	0.5~2.5	mm
Film cutting accuracy	±1	mm
Cover pressure range	1~5	kgf/cm²
Lamination speed range	2~12	m/min
Device Dimensions	945×650×610	mm
Transverse film cutting stroke	400	mm
Total weight of equipment	≈100	kg
