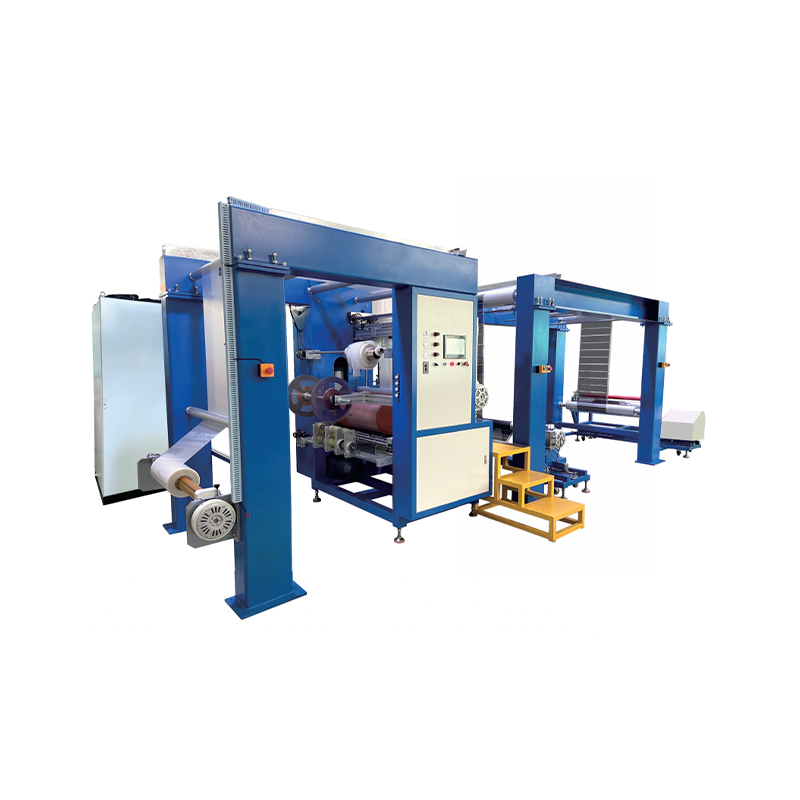

Electric Heating Film Laminating Machine

LPFM-YW1200-300ECP
This equipment is mainly suitable for roll-to-roll lamination of 0.08~0.2PET, electric heating film and winding, and is mainly used for electric heating film lamination.

Consult

Features
Technical Indicators
Overall Dimension

1. There is a cooling roller behind the heating roller, and the roller uses an aluminum tube for cooling and shaping. 2. The film unwinding design is equipped with a manual deviation adjustment device and magnetic powder tension control. 3. The unwinding has an automatic deviation correction function, and the ultrasonic deviation correction photoelectric can be fine-tuned. 4. The rewinding uses a pot wheel reducer + magnetic powder clutch to ensure that the rewound material will not be returned. 5. The design has a copper coil release device, the position can be flexibly adjusted, and the overall alignment can be fine-tuned after the combination of multiple copper strips. 6. Each copper coil uses magnetic powder tension control to ensure that the tension of each copper strip is constant Stable. 7. Double-sided adhesive: equipped with manual deviation adjustment device and magnetic powder tension control. 8. Equipped with waste collection function, the release paper of copper strip or protective film can be rolled up. 9. Designed with die-cutting device, die-cut electrode holes synchronously without stopping the machine. 10. Using PLC control + touch screen human-computer interaction operation, the equipment performance is more stable and the operation is more convenient. 11. With counting and length counting functions, the safety protection meets international standards. 12. Designed with automatic fault alarm function, it can easily eliminate the fault.
LPFM-YW1200-300ECP Name Specifications Unit Length of steel roll under lamination 1200 mm Diameter of steel roll under lamination 300 mm Length of rubber roller on lamination 1200 mm Diameter of rubber roller on lamination 300 mm Cooling roll length 1200 mm Cooling Roll Diameter 200 mm Maximum film diameter 450 mm Maximum copper bar diameter 400 mm Maximum discharge diameter 500 mm Laminate thickness range 0.05~0.5 mm Maximum overlap width 1000(Hot Cover) mm Winding weight 120 kg Use air pressure 4~6 kgf/cm² Lamination maximum pressure 500 kg Number of punching dies 2 psc Maximum punching size 40×40 mm Punching alignment accuracy ±1 mm Device input voltage 3×380/50 V/Hz Temperature control range Normal temperature ~160 ℃ Range of compound speed regulation 0~8 m/min Winding speed range 0~12 m/min Heating power 24 KW Total equipment power ≈30 KW Total weight of equipment ≈4000 kg Device Dimensions 7500×2100×2300 mm

LPFM-YW1200-300ECP
Name	Specifications	Unit
Length of steel roll under lamination	1200	mm
Diameter of steel roll under lamination	300	mm
Length of rubber roller on lamination	1200	mm
Diameter of rubber roller on lamination	300	mm
Cooling roll length	1200	mm
Cooling Roll Diameter	200	mm
Maximum film diameter	450	mm
Maximum copper bar diameter	400	mm
Maximum discharge diameter	500	mm
Laminate thickness range	0.05~0.5	mm
Maximum overlap width	1000(Hot Cover)	mm
Winding weight	120	kg
Use air pressure	4~6	kgf/cm²
Lamination maximum pressure	500	kg
Number of punching dies	2	psc
Maximum punching size	40×40	mm
Punching alignment accuracy	±1	mm
Device input voltage	3×380/50	V/Hz
Temperature control range	Normal temperature ~160	℃
Range of compound speed regulation	0~8	m/min
Winding speed range	0~12	m/min
Heating power	24	KW
Total equipment power	≈30	KW
Total weight of equipment	≈4000	kg
Device Dimensions	7500×2100×2300	mm
