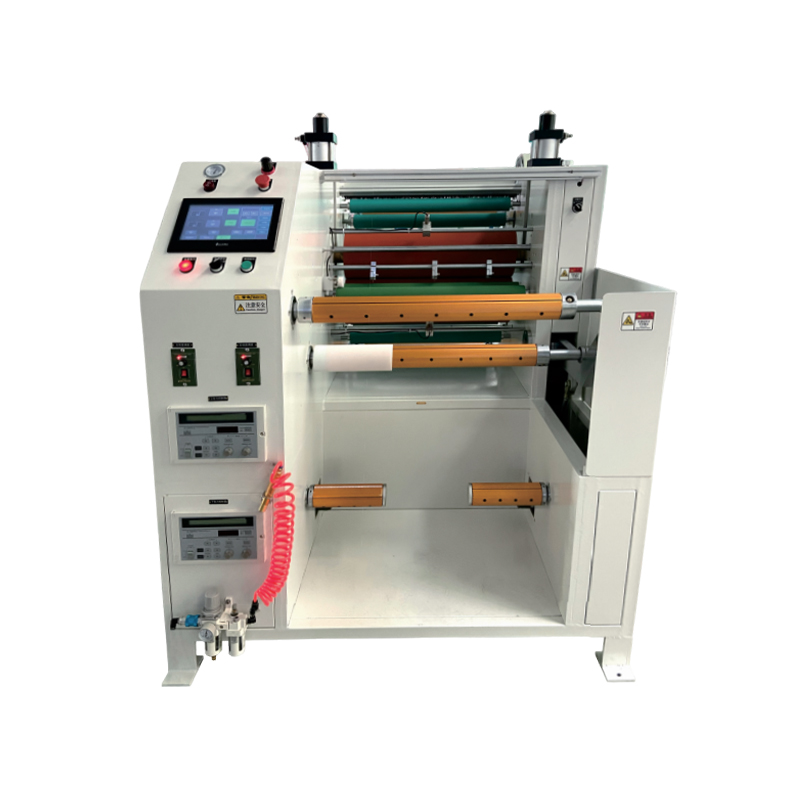

Film Roll to Roll Heating Laminating Machine

Film Roll to Roll Heating Laminating Machine

LPFM-C700-200EC
It is suitable for roll-to-roll heating bonding or cold lamination of electronic films with a thickness of 0.05~0.2mm. It can also be used for roll-to-roll bonding of PVC film, PE film, PET film, carbon film, double-sided tape, static film, P1 film, copper film, aluminum film, adhesive film and other roll products.

Consult

Features
Technical Indicators
Overall Dimension

1. Constant tension control system is used, and the surface is flat after lamination without bending, visible bubbles and wrinkles. 2. The unwinding shaft is an inflatable shaft, one side is fixed, and the other side is rotated out for loading, which is convenient and quick to install or replace materials. 3. PLC intelligent control is used, human-computer interactive touch screen operation, and parameter setting is convenient and fast. 4. It is designed with film slitting and trimming functions, and two sets of rewinding shafts. The rewinding shaft and the edge material reel all use inflatable shafts. 5. A set of silicone rollers can be heated for lamination, and a constant temperature automatic control system is used. 6. Both feeding and unloading have automatic deviation correction functions, the laminating pressure is pneumatically adjusted. 7. There is an automatic length and speed display system, and an anti-static mechanism.
LPFM-C700-200EC
Name
Specifications
Unit
Device input voltage
380/50
V/Hz
Total equipment power
8
KW
Motor Power
0.75
KW
Automatic correction range
±30
mm
Heater power
6
KW
Film thickness range
0.05~0.2
mm
Pressure range
2~8
kg/cm²
Tension range
0~300
N
Count max length
400
mm
Rubber roller length
700
mm
Laminating Roller Diameter
200
mm
Rubber roller temperature
80±3
℃
Correction accuracy
<1
mm
Range of compound speed regulation
0~18
m/min
Film temperature
≤100
℃
Maximum film diameterr
300
mm
Maximum film width
650
mm
Total weight of equipment
≈800
kg
Device Dimensions
3400×1400×1600
mm

LPFM-C700-200EC
Name	Specifications	Unit
Device input voltage	380/50	V/Hz
Total equipment power	8	KW
Motor Power	0.75	KW
Automatic correction range	±30	mm
Heater power	6	KW
Film thickness range	0.05~0.2	mm
Pressure range	2~8	kg/cm²
Tension range	0~300	N
Count max length	400	mm
Rubber roller length	700	mm
Laminating Roller Diameter	200	mm
Rubber roller temperature	80±3	℃
Correction accuracy	<1	mm
Range of compound speed regulation	0~18	m/min
Film temperature	≤100	℃
Maximum film diameterr	300	mm
Maximum film width	650	mm
Total weight of equipment	≈800	kg
Device Dimensions	3400×1400×1600	mm
