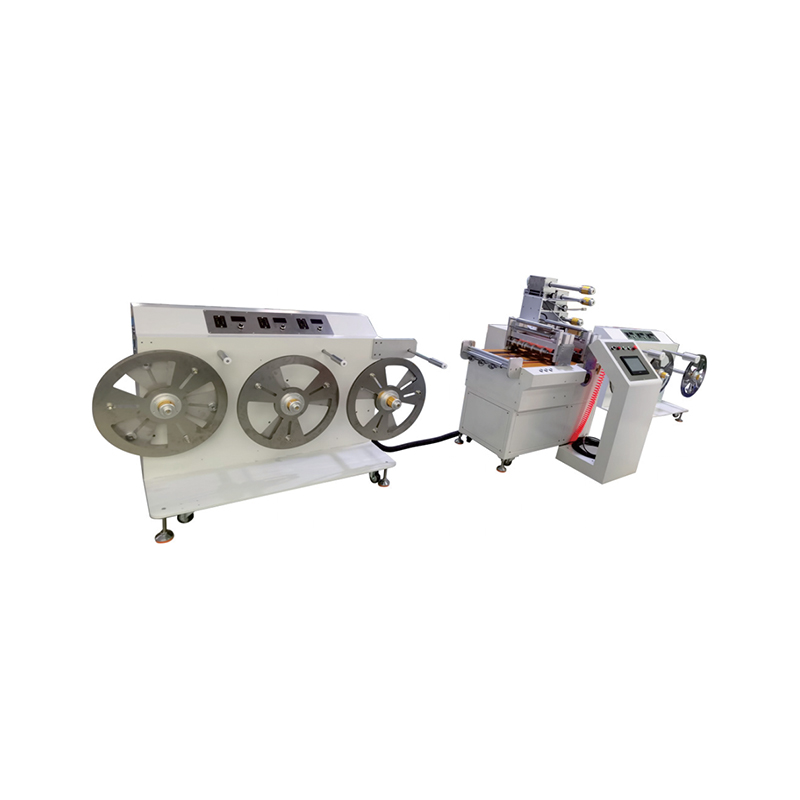

Automatic Stainless Steel Laminating Machine

LPFM-YW400-300EP2
It is suitable for laminating stainless steel sheets with a thickness of 0.1~0.5mm and a width of 15~50mm, it is suitable for laminating with conductive adhesives with a pressing temperature of room temperature to 160℃, it can laminate 1~3 stainless steel sheets at the same time.

Consult

Features
Technical Indicators
Overall Dimension

1. Both the unwinding and receiving shafts are equipped with independently adjustable motors and magnetic powder clutches, with independent tension and a low-material alarm function. 2. The machine features automatic width adjustment, automatically positioning according to preset parameters, with the positioning width precisely controlled by a servo motor. 3. All film guide rollers are made of metal to prevent and eliminate static electricity in the film, ensuring smoother, wrinkle-free film feeding and guiding. 4. Magnetic powder tension control is used on the unwinding rollers to ensure constant tension during the laminating process, and the unwinding tension can be easily adjusted. 5. The laminating rollers are pneumatically operated, with a digitally adjustable laminating pressure display and alarms for overpressure and below-set pressure. 6. The laminating power is driven by a variable frequency motor and reducer, ensuring constant and stable speed control. 7. The oil temperature rollers utilize six sets of heating tubes to heat the thermal oil. Keeps the temperature difference on the steel surface within ±2°C. 8. The entire machine is fully automatically controlled by a PLC program. During production, the equipment automatically operates after entering various parameters based on the product. 9. All operating movements and motor failures generate automatic alarms, facilitating troubleshooting. 10. All parameters and production control status can be operated and monitored on the touch screen. 11. It features a pressure detection system with alarms for under- and over-pressure. It also has speed and meter functions, with an alarm for exceeding the set length. 12. It can display various dynamic data and store data related to length and quantity, automatically saving the latest 20 records and providing automatic safety protection. 13. It has a one-touch start function that allows you to access the required lamination specifications with one click, allowing you to begin laminating without any setup.
LPFM-YW400-300EP2
Name
Specifications
Unit
The first set of cladding rolls
100 (upper lip)
mm
The second set of cladding rolls
100 (upper lip)
mm
The first set of clad lower rollers
290 (upper lip)
mm
The second set of clad lower rolls
100 (upper lip)
mm
Feed positioning length
400
mm
Laminated product width
15~50
mm
Automatic positioning stroke
40
mm
Maximum unwinding diameter
460
mm
Maximum film diameter
180
mm
Charging inner cylinder diameter
300
mm
Lnner cylinder diameter
75
mm
Use air pressure
4~6
kg/cm²
Laminate thickness range
0.1~0.5
mm
Rewind/unwind motor
60
W
Magnetic powder brake
0.5
KG
Magnetic powder clutch
0.5
KG
Lamination temperature range
Normal temperature ~160
℃
Lamination roll temperature deviation
±5
℃
Lamination speed range
0~3
m/min
Total equipment power
7.2
KW
Device input voltage
380/50
V/Hz
Total weight of equipment
≈1100
kg
Laminating rollheating function
4.8
KW
Lamination accuracy
≤0.2
mm
Outer dimensions of the device
6000×2400×1560
mm

LPFM-YW400-300EP2
Name	Specifications	Unit
The first set of cladding rolls	100 (upper lip)	mm
The second set of cladding rolls	100 (upper lip)	mm
The first set of clad lower rollers	290 (upper lip)	mm
The second set of clad lower rolls	100 (upper lip)	mm
Feed positioning length	400	mm
Laminated product width	15~50	mm
Automatic positioning stroke	40	mm
Maximum unwinding diameter	460	mm
Maximum film diameter	180	mm
Charging inner cylinder diameter	300	mm
Lnner cylinder diameter	75	mm
Use air pressure	4~6	kg/cm²
Laminate thickness range	0.1~0.5	mm
Rewind/unwind motor	60	W
Magnetic powder brake	0.5	KG
Magnetic powder clutch	0.5	KG
Lamination temperature range	Normal temperature ~160	℃
Lamination roll temperature deviation	±5	℃
Lamination speed range	0~3	m/min
Total equipment power	7.2	KW
Device input voltage	380/50	V/Hz
Total weight of equipment	≈1100	kg
Laminating rollheating function	4.8	KW
Lamination accuracy	≤0.2	mm
Outer dimensions of the device	6000×2400×1560	mm
