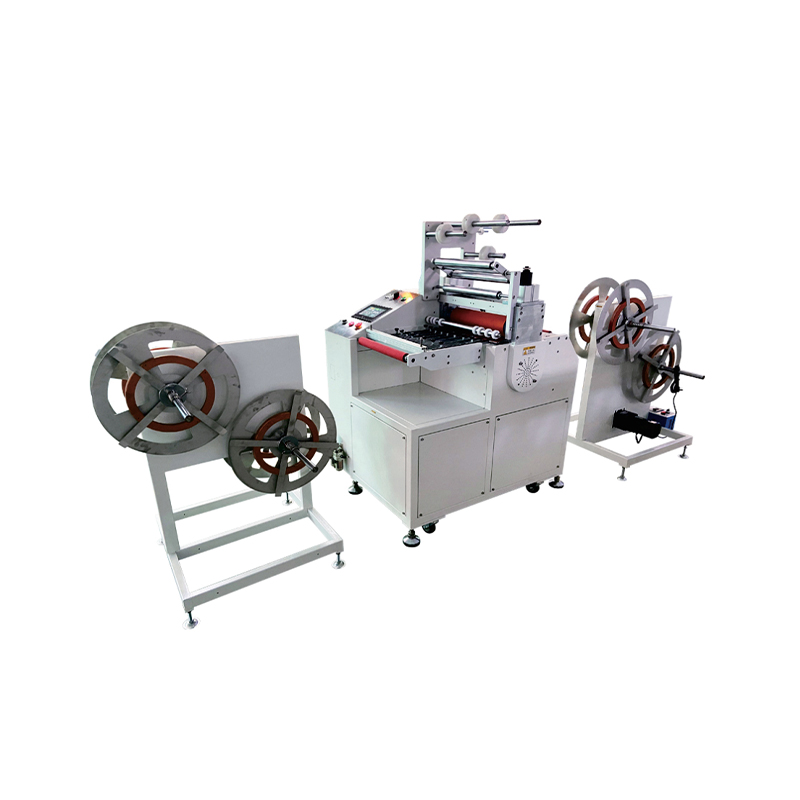

Oil Temperature Reinforced Steel Bar Coating Machine

Oil Temperature Reinforced Steel Bar Coating Machine

LPFM-YW400-300ED
Suitable for coating stainless steel materials with a thickness of 0.05~0.5mm with conductive film.

Consult

Features
Technical Indicators
Overall Dimension

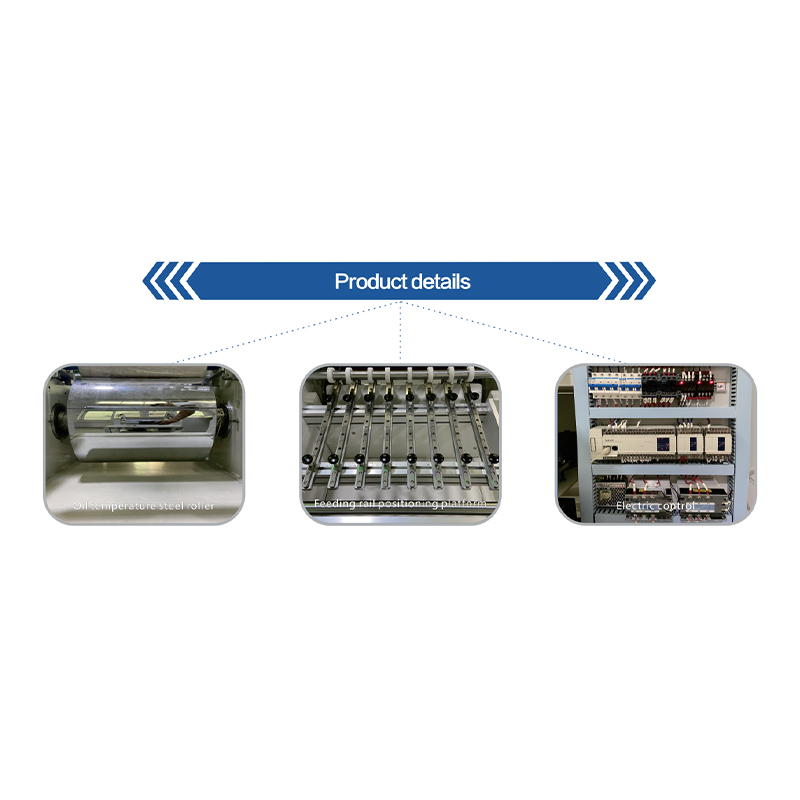

1. A set of laminating rollers: the upper roller is a high-quality silicone roller, and the lower roller is an oil-heated steel roller. Single-sided, multi-roll laminating is possible. 2. Manual tension adjustment, a tapered cone is used for the film loading shaft, and a single-arm, suspended film unloading method is quick and convenient. 3. The feed uses a positioning ring and a positioning guide to position the material. 4. Real-time temperature monitoring is provided, with temperature sensors on each roller and an alarm for overtemperature. 5. The laminating roller is equipped with a pneumatic pressure sensor for real-time pressure monitoring and alarms for under- and over-pressure. 6. The user interface is simple and easy to understand, making operation more user-friendly. 7. The device has a meter counter and a three-color alarm light that provides an alarm output when an abnormality occurs.
LPFM-YW400-300ED
Name
Specifications
Unit
Device input voltage
380/50
V/Hz
Lamination motor power
750
KW
Heating power of heating tube
6×500
W
Platform height
920±10
mm
Laminated product width
15~50,1~4columns
mm
Glue Roller Specifications
φ100×400
mm
Lower steel roll specifications
φ290×400
mm
Film temperature
≤180
℃
Lamination width
300
mm
Maximum film diameter
200
mm
Cover speed range
0~3
m/min
Use air pressure
2~6
kg/cm²
Pressing force range
10~40
kg/cm²
Laminate thickness range
0.05~1
mm
Lamination motor power
750
W
Device Dimensions
1090×900×1420
mm

LPFM-YW400-300ED
Name	Specifications	Unit
Device input voltage	380/50	V/Hz
Lamination motor power	750	KW
Heating power of heating tube	6×500	W
Platform height	920±10	mm
Laminated product width	15~50,1~4columns	mm
Glue Roller Specifications	φ100×400	mm
Lower steel roll specifications	φ290×400	mm
Film temperature	≤180	℃
Lamination width	300	mm
Maximum film diameter	200	mm
Cover speed range	0~3	m/min
Use air pressure	2~6	kg/cm²
Pressing force range	10~40	kg/cm²
Laminate thickness range	0.05~1	mm
Lamination motor power	750	W
Device Dimensions	1090×900×1420	mm
