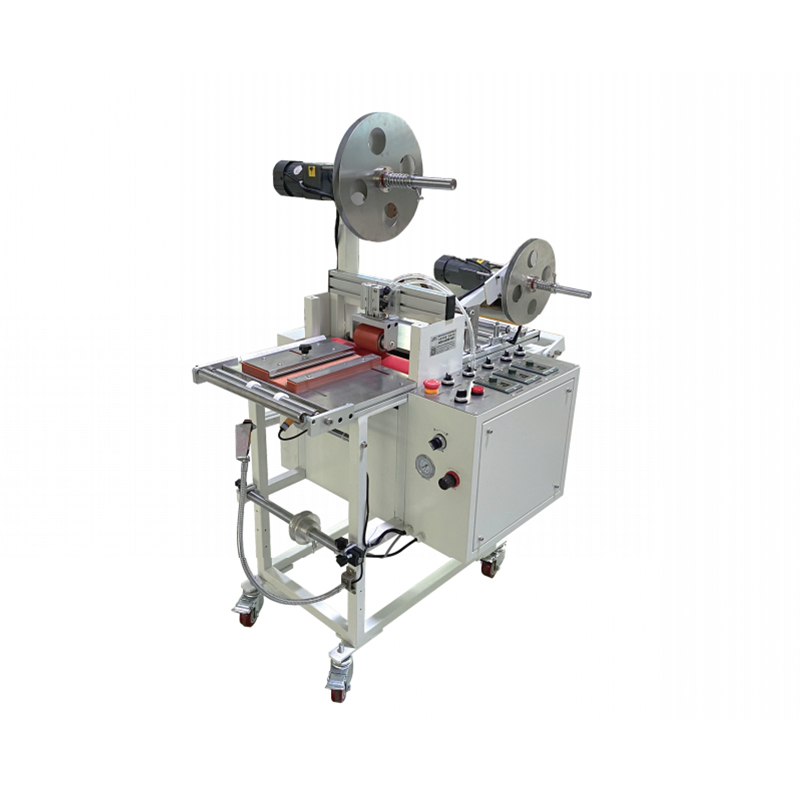

Reinforced Steel Sheet Receiver

LPSL-C300-60C
The punched reinforcing steel sheets are rolled to roll for coating and waste removal. The thickness of the rolled products ranges from 0.1 to 1 mm.

Consult

Features
Technical Indicators
Overall Dimension

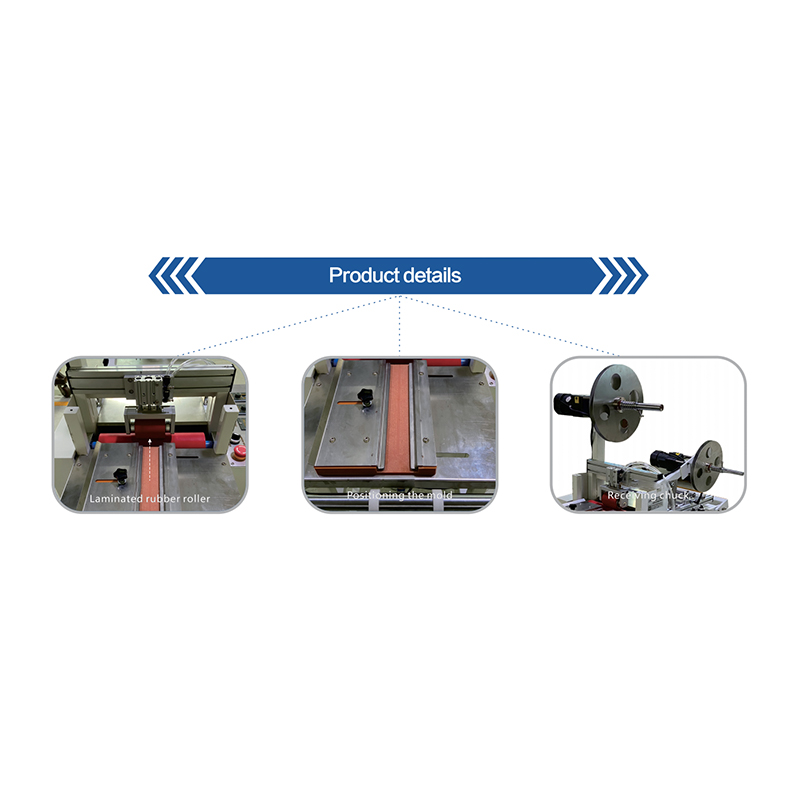

1. Roll-to-roll single-layer lamination with automatic strip waste removal and finished product rewinding. 2. Lamination, rewinding, and scrap collection are all controlled by independent motors with independently adjustable speeds and forward and reverse rotation. 3. The feeder has a positioning slot and a photoelectric sensor switch that automatically adjusts to the press speed. 4. Pneumatic pressure regulation with a laminating pressure display and adjustable pressure for different products. 5. Two laminating rubber rollers offer moderate hardness, ensuring bubble- and wrinkle-free lamination. 6. Unwinding, rewinding, and applying protective film utilize single-sided suspended chrome-plated rods for quick and convenient loading and unloading. 7. The unwinding and protective film applications utilize clamping tensioners for tension adjustment, while the rewinding and scrap collection utilize spring-loaded tensioners for tension adjustment.
LPSL-C300-60C
Name
Specifications
Unit
Diameter of laminating rubber roller
60
mm
Rubber roller pressure range
0~10
kgf/cm²
Lower rubber roller length
300
mm
Top roller length
80
mm
Effective Lamination Width
70
mm
Rubber roller hardness
60
HS
Lamination speed range
0~8
m/min
Laminated product thickness
0.02~1
mm
Pressure regulation accuracy
0.2
kgf/cm²
Maximum film diameter
300
mm
Maximum discharge diameter
240
mm
Voltage
220
V
Total equipment power
300
W
Device Dimensions
1380×600×1200
mm

LPSL-C300-60C
Name	Specifications	Unit
Diameter of laminating rubber roller	60	mm
Rubber roller pressure range	0~10	kgf/cm²
Lower rubber roller length	300	mm
Top roller length	80	mm
Effective Lamination Width	70	mm
Rubber roller hardness	60	HS
Lamination speed range	0~8	m/min
Laminated product thickness	0.02~1	mm
Pressure regulation accuracy	0.2	kgf/cm²
Maximum film diameter	300	mm
Maximum discharge diameter	240	mm
Voltage	220	V
Total equipment power	300	W
Device Dimensions	1380×600×1200	mm
