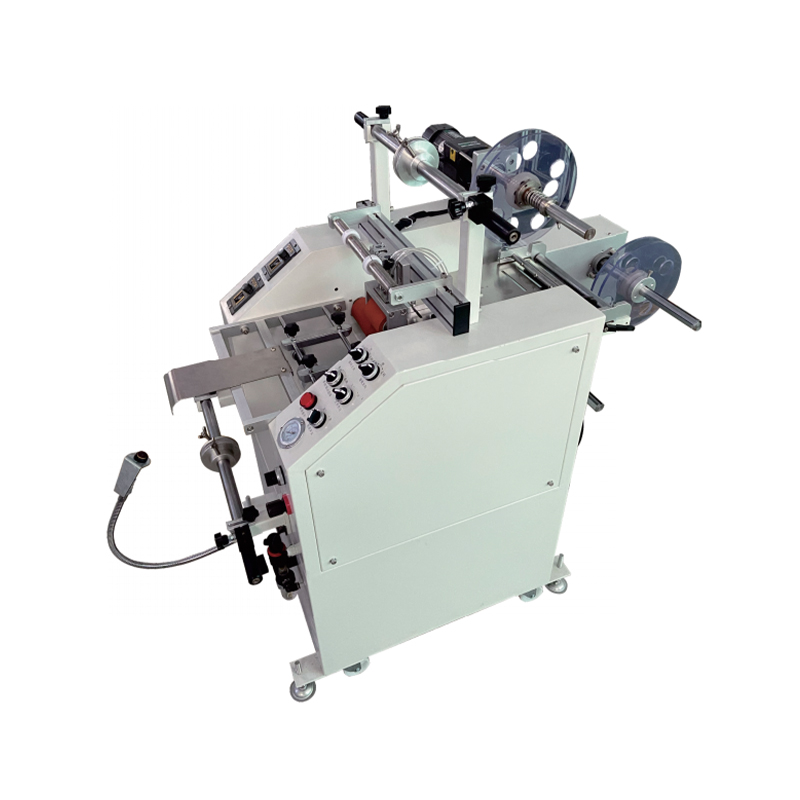

Upper And Lower Waste Discharge Dua-purpose Feeder

LPSL-C300-60C
The punched reinforcing steel sheets are rolled to roll for coating and waste removal. The thickness of the rolled products ranges from 0.1 to 1 mm.

Consult

Features
Technical Indicators
Overall Dimension

1. Roll-to-roll single-layer lamination with two film unwinding racks (optional for upper or lower lamination) enables automatic strip waste discharge and finished product rewinding. 2. Lamination, rewinding, and scrap collection are controlled by independent motors, with independently adjustable lamination, rewinding, and scrap collection speeds, including forward and reverse operation. 3. The feeder has a positioning slot and a photoelectric sensor switch, and the feed end is docked with a punch press. 4. Pneumatic pressure regulation with a lamination pressure display and adjustable pressure for different products. 5. Both laminating rollers are coated with high-quality nitrile rubber for moderate hardness, ensuring bubble- and wrinkle-free lamination. 6. The unwinding, rewinding, and protective film application utilize single-sided suspended chrome-plated rods for quick and convenient loading and unloading. 7. The unwinding and protective film application utilize clamping tensioners for tension adjustment, while the rewinding and scrap collection utilize spring tensioners for tension adjustment.
LPSL-C300-60C
Name
Specifications
Unit
Diameter of laminating rubber roller
60
mm
Lower rubber roller length
300
mm
Top roller length
80
mm
Rubber roller hardness
60
HS
Effective Lamination Width
70
mm
Film diameter
300
mm
Lamination speed range
0~8
m/min
Laminated product thickness
0.02~1
mm
Discharge diameter
240
mm
Receiving diameter
240
mm
Rubber roller pressure range
0~10
kgf/cm²
Pressure regulation accuracy
0.2
kgf/cm²
Voltage
220
V
Total equipment power
300
W
Total weight of equipment
80
kg
Device Dimensions
1380×600×1200
mm

LPSL-C300-60C
Name	Specifications	Unit
Diameter of laminating rubber roller	60	mm
Lower rubber roller length	300	mm
Top roller length	80	mm
Rubber roller hardness	60	HS
Effective Lamination Width	70	mm
Film diameter	300	mm
Lamination speed range	0~8	m/min
Laminated product thickness	0.02~1	mm
Discharge diameter	240	mm
Receiving diameter	240	mm
Rubber roller pressure range	0~10	kgf/cm²
Pressure regulation accuracy	0.2	kgf/cm²
Voltage	220	V
Total equipment power	300	W
Total weight of equipment	80	kg
Device Dimensions	1380×600×1200	mm
