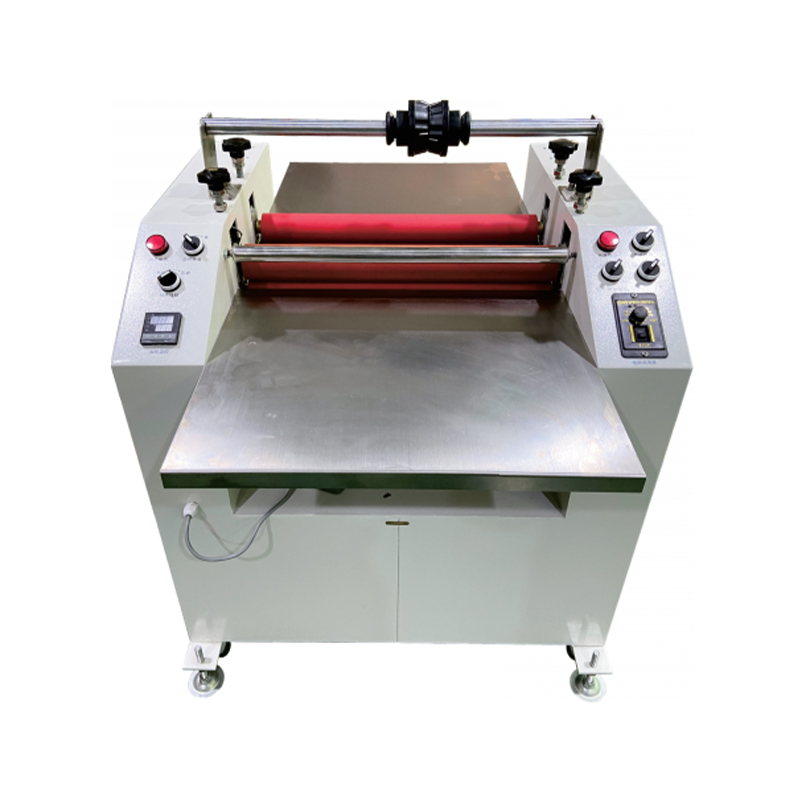

Pre-coating Film Laminating Machine

LPFM-JD500-60E
Suitable for hot and cold lamination or protective film coating in commercial advertising, trademark production, printing and packaging, electronics and other industries.

Consult

Features
Technical Indicators
Overall Dimension

1. Stainless steel loading and unloading platforms allow for flexible positioning and manual film cutting. 2. A set of heated laminating rubber rollers provides optimal hardness and uniform lamination pressure, ensuring smooth lamination without wrinkles, bubbles, or shedding. 3. The upper and lower rubber rollers in the front set are independently temperature-controlled and automatically constant, while the rear set of press rollers is cooled and shaped, ensuring smooth and secure lamination. 4. Single- and double-sided lamination is possible, with manual adjustment of lamination pressure, thickness, and film roll tension. 5. A forward and reverse function ensures product can be reversed when needed.
LPFM-JD500-60E
Name
Specifications
Unit
Rubber roller diameter
60
mm
Lagging length
500
mm
Laminated width
400
mm
Lamination speed
1~8
m/min
Normal temperature adjustable
25~150
℃
Laminated product thickness
0.01~20
mm
Platform width
520
mm
Feed table length
410
mm
Discharge table length
410
mm
Platform height
700
mm
Using electric
220/50
V/Hz
Motor Power
90
W

LPFM-JD500-60E
Name	Specifications	Unit
Rubber roller diameter	60	mm
Lagging length	500	mm
Laminated width	400	mm
Lamination speed	1~8	m/min
Normal temperature adjustable	25~150	℃
Laminated product thickness	0.01~20	mm
Platform width	520	mm
Feed table length	410	mm
Discharge table length	410	mm
Platform height	700	mm
Using electric	220/50	V/Hz
Motor Power	90	W
