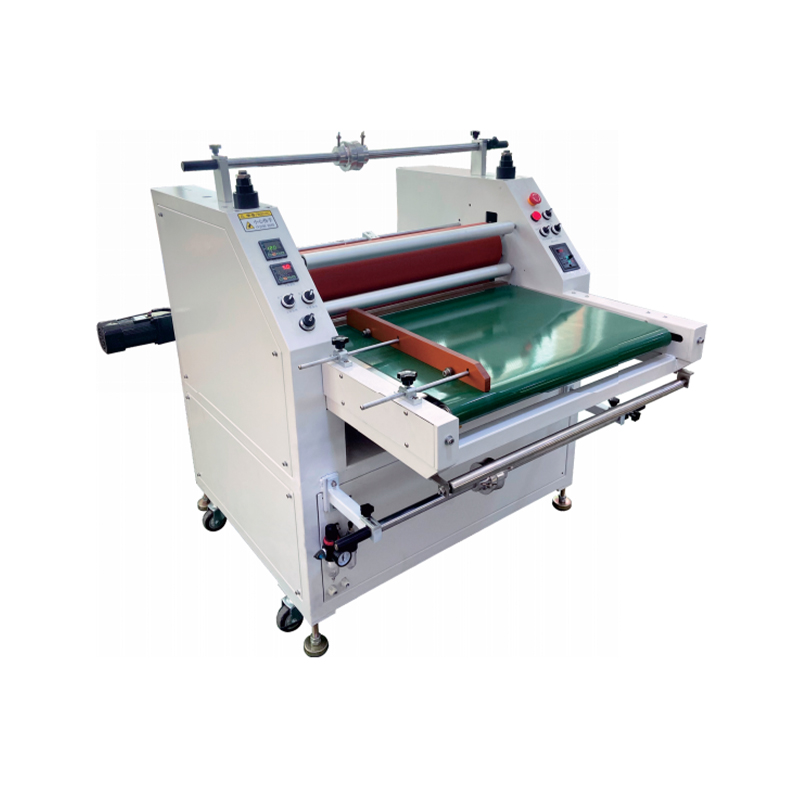

Heating Laminating Machine

LPFM-R700-150E
Suitable for advertising cardboard, acrylic board, light guide plate, packaging box, board mounting, printing sheet laminating, glass sheet laminating, laminating, metal sheet laminating, marble and wood board laminating.

Consult

Features
Technical Indicators
Overall Dimension

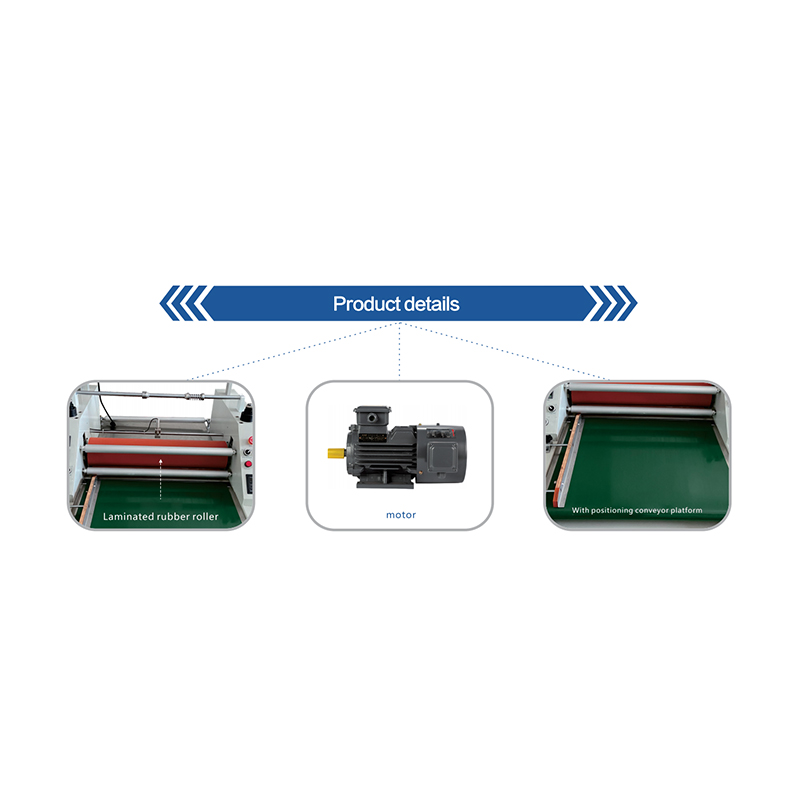

1. Heated laminating machine, capable of cold lamination, capable of single- or double-sided lamination. 2. A set of laminating rubber rollers, both upper and lower, are heated silicone rubber rollers with moderate hardness and long-lasting high-temperature resistance. 3. Internal heating tubes in the rubber rollers, using solid-state and high-precision infrared temperature measurement for precise temperature control. 4. Pneumatically adjustable laminating pressure, manually adjustable laminating thickness, and manually adjustable film roll tension (optional magnetic powder tension control). 5. Laminating results in smooth, wrinkle-free, bubble-free, and non-flaking films.
LPFM-R700-150E
Name
Specifications
Unit
Diameter of laminating rubber roller
150
mm
Diameter of film guide roller
40
mm
Effective length of rubber roller
700
mm
Effective heat coverage width
600
mm
Effective cold cladding width
650
mm
Lamination speed range
0~12
m/min
Silicone roller hardness
60±5
HS
Laminated product thickness
0.1~10
mm
Film diameter
300
mm
Rewinding diameter
300
mm
Feed platform length
650
mm
Outlet platform length
650
KW
Rubber roller pressure range
0~6
kgf/cm²
Rubber roller temperature
120±3
℃
Rubber roller heating power
≈3
KW
Pressure regulation accuracy
0.2
kgf/cm²
Film quantity
2
kgf/cm²
Total weight of equipment
300
kg
Voltage
220
V
Total equipment power
≈4
KW
Device Dimensions
1400×1170×1200
mm

LPFM-R700-150E
Name	Specifications	Unit
Diameter of laminating rubber roller	150	mm
Diameter of film guide roller	40	mm
Effective length of rubber roller	700	mm
Effective heat coverage width	600	mm
Effective cold cladding width	650	mm
Lamination speed range	0~12	m/min
Silicone roller hardness	60±5	HS
Laminated product thickness	0.1~10	mm
Film diameter	300	mm
Rewinding diameter	300	mm
Feed platform length	650	mm
Outlet platform length	650	KW
Rubber roller pressure range	0~6	kgf/cm²
Rubber roller temperature	120±3	℃
Rubber roller heating power	≈3	KW
Pressure regulation accuracy	0.2	kgf/cm²
Film quantity	2	kgf/cm²
Total weight of equipment	300	kg
Voltage	220	V
Total equipment power	≈4	KW
Device Dimensions	1400×1170×1200	mm
