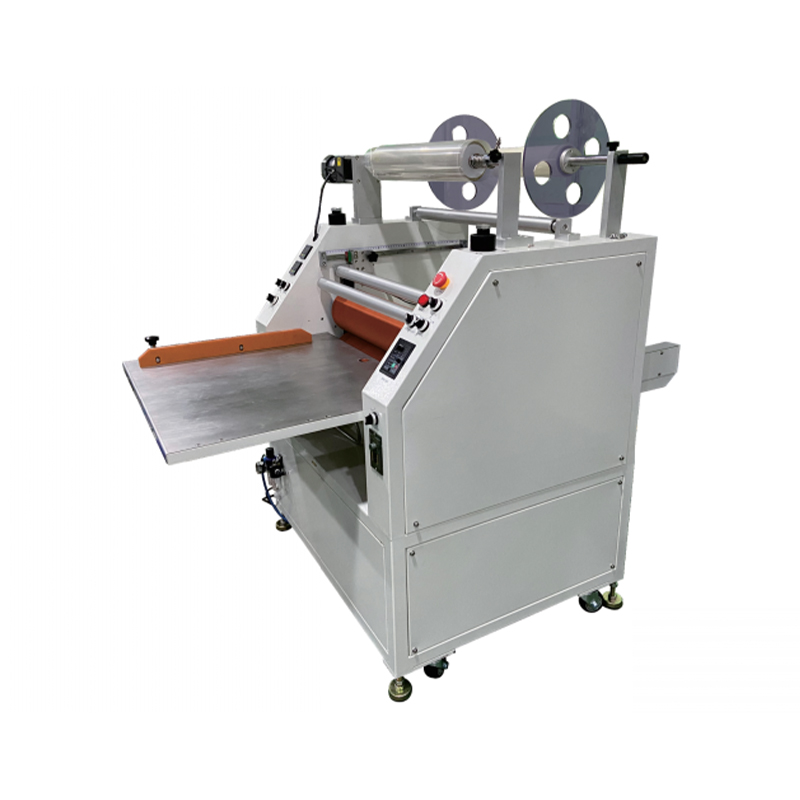

Heating Laminating Machine

LPFM-R700-150E
Suitable for single-sided lamination of sheets, product thickness range: 0.1~10mm, suitable for 0.03-0.1mm thick pre-coated film, PET film, and protective film.

Consult

Features
Technical Indicators
Overall Dimension

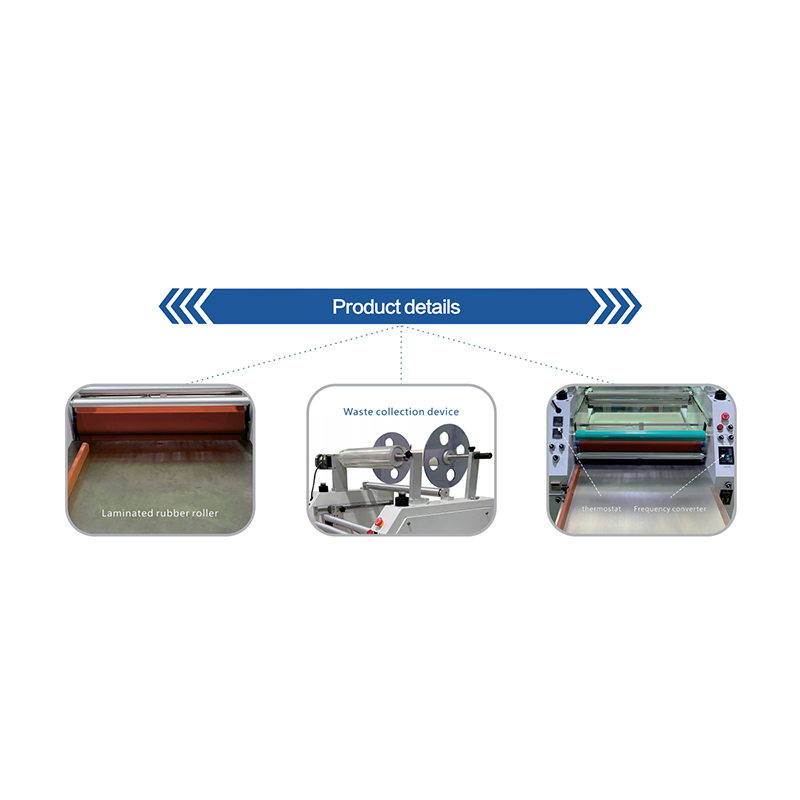

1. Capable of laminating and laminating sheets and plates on one side. 2. Pneumatically adjustable pressure allows for flexible adjustment to suit different products. 3. A set of laminating rollers, with independently heated upper and lower rollers, maintains constant temperature. 4. Silicone rollers ensure smooth lamination without wrinkles, bubbles, or shedding. 5. Easy-to-use film loading shaft with manually adjustable film tension and a release film retraction function. 6. Highly accurate, self-tuning temperature controller ensures precise temperature control.
LPFM-R700-150E
Name
Specifications
  Unit
Diameter of laminating rubber roller
150
  mm
Silicone roller hardness
65±5
  HS
Diameter of film guide roller
40
  mm
Effective length of rubber roller
700
  mm
Effective heat coverage width
600
  mm
Effective cold cladding width
650
  mm
Lamination speed range
0~12
  m/min
Laminated product thickness
0.1~10
  mm
Maximum film diameter
300
  mm
Maximum winding diameter
300
  mm
Voltage
220
  V
Rubber roller temperature
120±3
  ℃
Total equipment power
≈4
  KW
Rubber roller pressure range
0~6
  kgf/cm²
Total weight of equipment
300
  kg
Rubber roller heating power
≈3
  KW
Pressure regulation accuracy
0.2
  kgf/cm²
Feed platform length
650
  mm
Outlet platform length
650
  mm
Device Dimensions
3890×2260×1600
  mm

LPFM-R700-150E
Name	Specifications	Unit
Diameter of laminating rubber roller	150	mm
Silicone roller hardness	65±5	HS
Diameter of film guide roller	40	mm
Effective length of rubber roller	700	mm
Effective heat coverage width	600	mm
Effective cold cladding width	650	mm
Lamination speed range	0~12	m/min
Laminated product thickness	0.1~10	mm
Maximum film diameter	300	mm
Maximum winding diameter	300	mm
Voltage	220	V
Rubber roller temperature	120±3	℃
Total equipment power	≈4	KW
Rubber roller pressure range	0~6	kgf/cm²
Total weight of equipment	300	kg
Rubber roller heating power	≈3	KW
Pressure regulation accuracy	0.2	kgf/cm²
Feed platform length	650	mm
Outlet platform length	650	mm
Device Dimensions	3890×2260×1600	mm
